Tango 29Wireless LAN and Bluetooth Covert Panel Mount Antenna

The Tango 29 is a compact exterior mounted panel antenna with an omni directional radiation pattern.

Covert in nature due to its size and shape; it could be mistaken for a bolt/nut cover and would be hard to grip; providing a good anti-vandal solution.

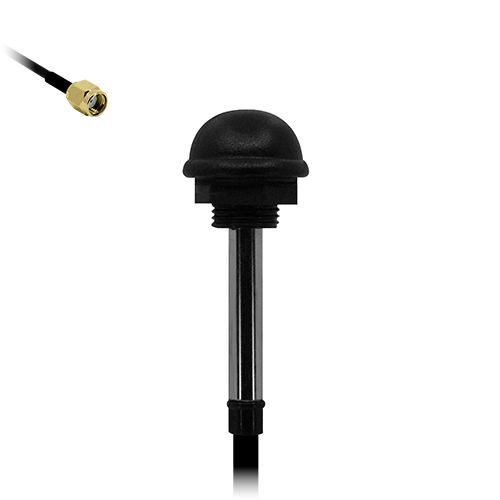

This antenna is supplied as standard with 1 meter of cable and an SMA male reverse polarity connector.

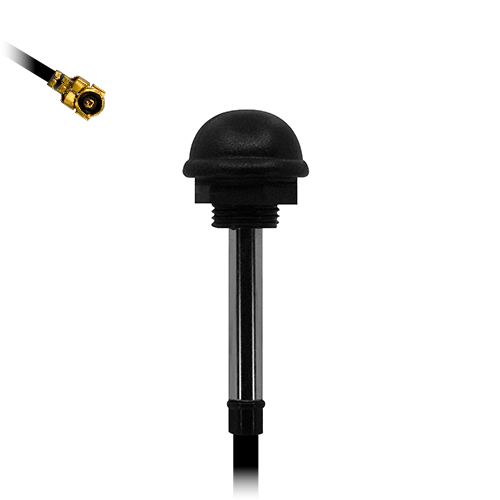

I-PEX MHF1 (U.fl) and MHF4 connector options are also available with 100 mm of 1.13 mini-coax cable.

Alternative connectors and cable lengths can be specified for volume orders.

Key Features

• Wi-Fi, Bluetooth and ZigBee compatible

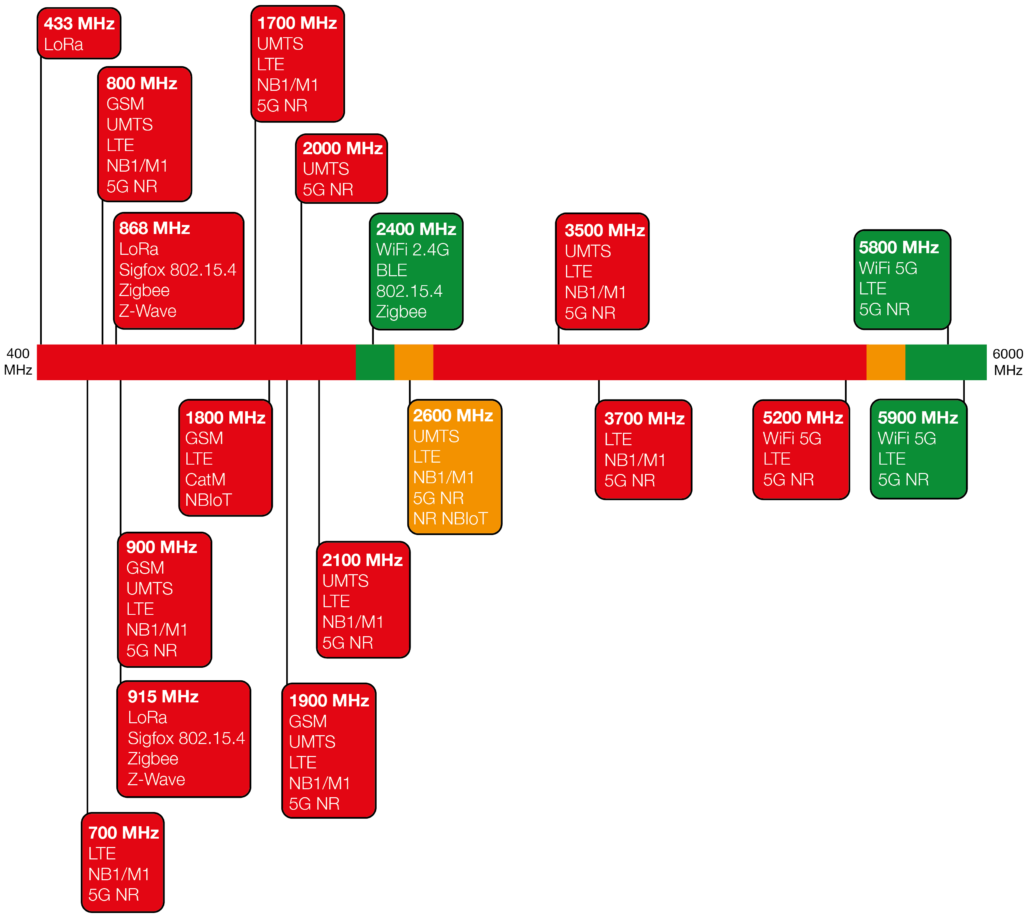

• Supports IEEE 802.15.4 / ISM 2.4 GHz / ISM 5.8 GHz
• Compact size
• Omnidirectional monopole
• Covert Anti-Vandal Design

Electrical Specifications

• Impedance: 50 Ohm
• Max Input Power: 5 W
• Polarization: Linear
• Ground plane independent: Yes

Environmental Specifications

• Operating Temperature range: -20 to +60 °C
• Storage Temperature range: -30 to +75 °C

Mechanical Specifications

• Dimensions: 10 mm Length, 19 mm Ø
• Weight: 22 g
• Connector: RP-SMAM MHF1 MHF4
• Mounting method: 8 mm stud length with max panel thickness 3.5 mm
• Housing materials: ABS Black
