Tango 585G/4G LTE, Wi-Fi 7 ISM Ceiling Mount Antenna for 600-8000 MHz

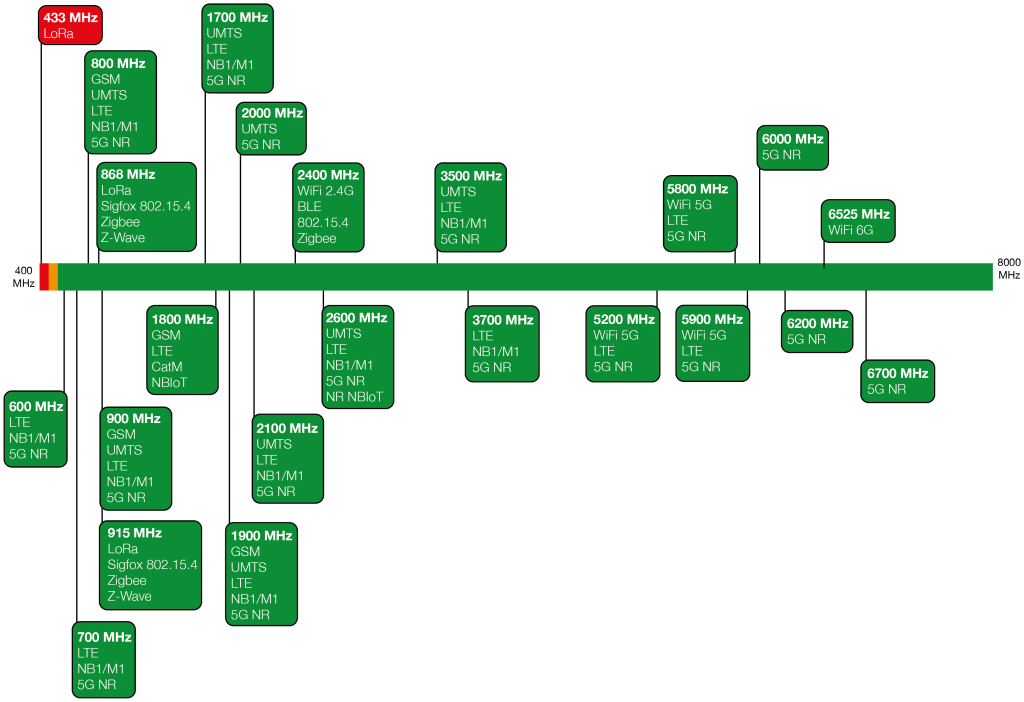

The Tango 58 is a wideband ceiling-mount antenna designed to cover a broad frequency range from 600 to 8000 MHz, making it suitable for modern ISM, cellular and Wi-Fi applications.

Ideal for indoor or in-building installations, the Tango 58’s low-profile, omni-directional design supports a variety of applications, from high-density environments to IoT connectivity hubs. The Tango 58 is compatible with key wireless standards, including 5G, 4G LTE, and 3G UMTS, and its support for dual-band Wi-Fi and Wi-Fi 6E/7 ensures future-proof operation.

The antenna’s robust construction enables straightforward installation on ceilings, offering reliable signal performance across all supported bands.
The Tango 58 comes standard with an N-Type female connector and is available in white or black housing to blend with various interior designs. Customisations, including alternative connectors and cable length options, are available upon request to meet unique installation requirements.

Key Features

• Supports 5G NR / 4G LTE / 3G UMTS bands
• Supports LTE Cat M, LTE Cat NB
• Dual-band Wi-Fi (2.4G & 5G) and Wi-Fi 6e/7 ready
• ISM 2.4 GHz / ISM 5.8 GHz compatible
• LoRa support for 868 MHz and 915 MHz bands
• Omni-directional pattern for optimal ceiling mount performance
• Through-hole mounting design for secure installation
• Supports ISM, public, and private wireless networks

Typical Applications

• Commercial and residential ceiling-mounted coverage
• IoT connectivity hubs in smart buildings
• Retail and public spaces requiring broad network access
• Network extenders and repeaters for in-building coverage
• High-density environments with multiple wireless standards

Electrical Specifications

• Impedance: 50 Ohm
• Polarization: Vertical
• Max Input Power: 50 W
• Ground plane independent: Yes

Environmental Specifications

• Operating Temperature range: -30 to +70 °C
• Storage Temperature range: -40 to +85 °C

Mechanical Specifications

• Dimensions: Ø 203 mm x 115 mm height
• Weight: 0.3 kg (including mount kit)
• Connector: N-Type Female
• Mounting method: Through-hole
• Housing materials: ABS, White or Black
