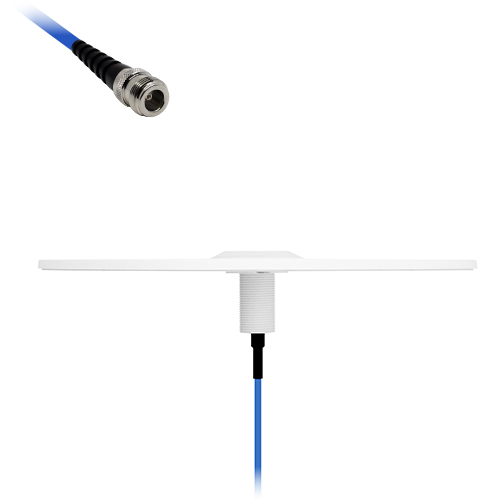

Tango 59600–8000 MHz Omni Wideband Low-PIM Indoor Ceiling DAS Antenna

The Tango 59 is a low-profile, ceiling-mounted antenna designed for in-building wireless systems that demand high performance and broad compatibility.

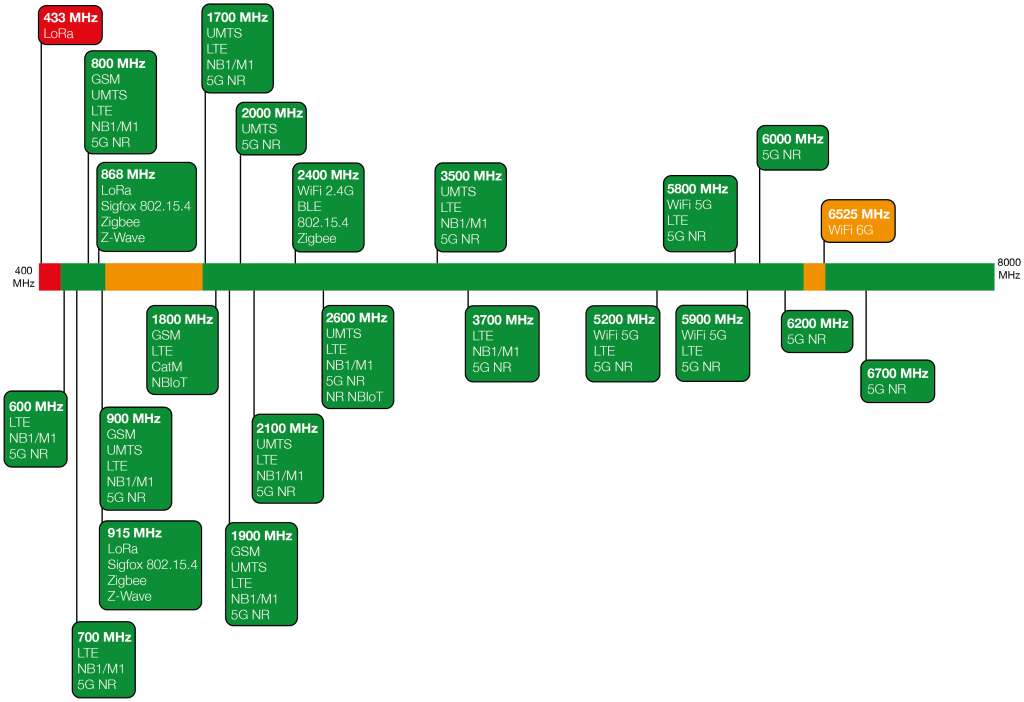

Covering frequencies from 600 MHz to 8000 MHz, it supports 5G, LTE, Wi-Fi 6E, Wi-Fi 7, and ISM technologies, making it ideal for enterprise DAS installations and industrial IoT environments. Its omnidirectional radiation pattern ensures even signal distribution throughout indoor spaces, while the internal design minimises passive intermodulation, helping to maintain cleaner signals in multi-operator and high-density deployments.

The low-profile housing blends discreetly into commercial and industrial interiors, while the plenum-rated cable allows installation in ceiling voids to meet building safety regulations.

The antenna is also compatible with LoRa and other ISM-based LPWAN protocols commonly used in smart building and sensor networks.

Key Features

• Designed for indoor Distributed Antenna Systems (DAS)
• Supports 5G NR, 4G LTE, and Wi-Fi 6E / Wi-Fi 7 technologies
• Operates across a wide 600 MHz to 8000 MHz frequency range
• Low passive intermodulation (PIM) for cleaner multi-operator signals
• Omnidirectional radiation pattern for consistent indoor coverage
• Plenum-rated cable, low-profile housing for ceiling tile integration

Typical Applications

• Enterprise office DAS for multi-network cellular coverage
• Wireless network extension in shopping centres and public venues
• Indoor connectivity backbone in logistics and warehouse environments
• Smart building deployments with ceiling-based antenna distribution

Additional Considerations

• Ground plane independent for flexible mounting in ceiling voids
• Flame-retardant radome compliant with UL94V-0 standards
• Compatible with LoRa and other ISM-based LPWAN systems

Electrical Specifications

• Frequency range: 600 – 8000 MHz
• Impedance: 50 Ω
• Polarisation: Vertical, Linear
• Average gain: 4.95 dBi
• Peak gain: 6.82 dBi
• Average spherically integrated total gain: -1.01 dBi
• Average efficiency: 77.7%
• VSWR: ≤ 2.1
• Input power: 50 W
• Directionality: Omni-directional
• Ground plane independent: Yes

Environmental Specifications

• Operating temperature range: -45°C to +75°C
• Storage temperature range: -50°C to +75°C

Mechanical Specifications

• Colour options: White
• Connector options: N-Type Female
• Mounting method: Ceiling
• Dimensions: 271 Ø x 11 mm
• Weight: 0.45 kg
• Radome: ABS
