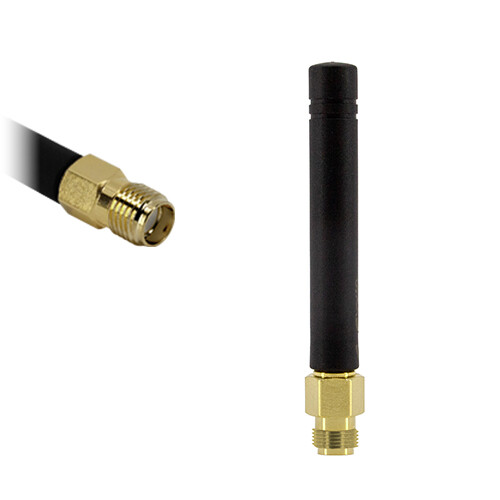

Delta 1A5G/4G & ISM 868 MHz 56mm Stubby Antenna

The Delta 1A Multiband antenna combines good performance with a small size, enabling its use with many of today’s GSM / GPRS (2G), UMTS (3G), LTE (4G/5G) and ISM 868 MHz band applications.

The omni-directional, radiating element is capped with a black high-grade rubber mould which allows flexibility and provides a rugged stylish finish.

Typical applications are Point of Sale Terminals, metering and alarm panel equipment.

Key Features

• Supports 5G NR / 4G LTE / 3G UMTS / 2G GSM
• Supports LTE Cat M, LTE Cat NB, NR Cat NB bands
• Supports WiFi 5GHz spectrum
• Supports LoRa, Sigfox, ISM 868 MHz, IEEE 802.15.4
• Ground-plane independent

Electrical Specifications

• Impedance: 50 Ohm
• Polarization: Vertical
• Max Input Power: 50 W
• Ground plane independent: Yes

Environmental Specifications

• Operating Temperature range: -20 to +60 °C
• Storage Temperature range: -30 to +75 °C

Mechanical Specifications

• Dimensions: 56 mm x 7.3 mm diameter
• Weight: 5.1 g
• Connector: SMA Male
• Mounting Method: Direct Connect
• Housing Material: TPR
