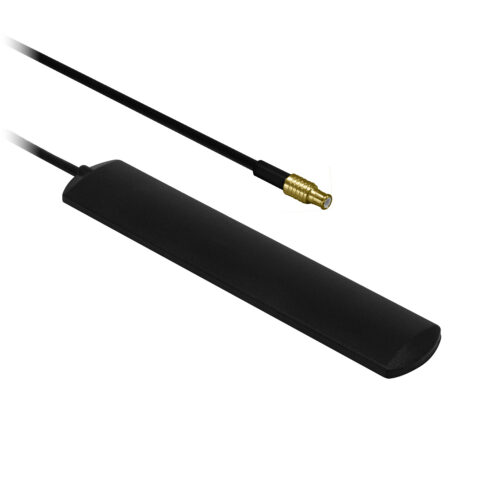

The Alpha 11 is an efficiently tuned PCB antenna that is suitable for a wide variety of RF and IoT modules, operating on 2G, 3G, 4G & 5G frequencies. The antenna also covers both Wi-Fi frequency bands.
The Alpha 11 is a competent performer within a sleek radome which will suit cost conscious volume applications where a quality product and good performance is required.
Alternative connectors or cable lengths can be specified for small volume orders.

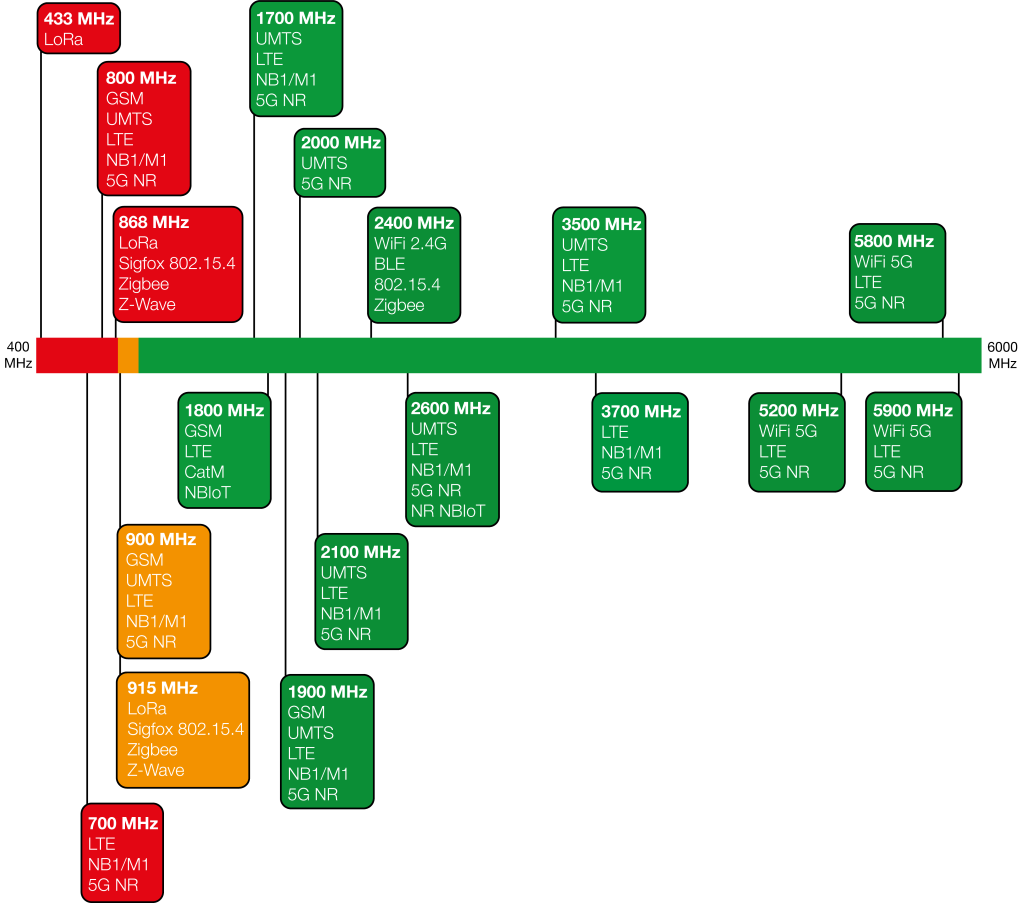

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.
Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
Siretta Part Number: ALPHA11/0.2M/SMAM/S/S/20
Description: Dual Band Wi-Fi 5G/4G Adhesive Flat Blade Antenna SMA Male 0.2m Cable
Siretta Part Number: ALPHA11/1M/SMAM/S/S/20
Description: Dual Band Wi-Fi 5G/4G Adhesive Flat Blade Antenna SMA Male 1m Cable
Siretta Part Number: ALPHA11/2.5M/SMAM/S/S/20
Description: Dual Band Wi-Fi 5G/4G Adhesive Flat Blade Antenna SMA Male 2.5m Cable
Siretta Part Number: ALPHA11/2.5M/MCXM/S/S/20
Description: Dual Band Wi-Fi 5G/4G Adhesive Flat Blade Antenna MCX male connector 2.5m Cable
Alternative cable lengths and connector types can be specified for small volume orders
