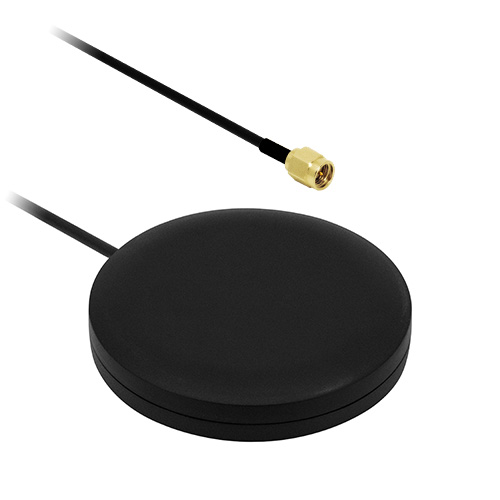

Alpha 15Quad Band GSM & 3G Puck Adhesive Antenna

The Alpha 15 is tuned to the quad band GSM and 3G frequencies,
allowing for worldwide use. The slender puck design is aesthetically pleasing, integrating well with modern IoT systems

Supplied with a 2.5 meter RG174 cable and SMA male connector as
standard. Alternative cable lengths and connectors can be fitted for volume orders.

Key Features

• GSM & 3G compatible
• Aesthetic puck shape design
• Adhesive base
• Peak Gain of 2dBi
• Supplied as standard with an adhesive base
• Magnetic and screw base options
• Intended for indoor use
• Quad band GSM & 3G compatible for worldwide use

Electrical Specifications

• Impedance: 50 Ohm
• Peak Gain: 2 dBi
• VSWR: <2.5
• Frequency range: 824 ~ 960, 1710 ~ 2170MHz
• Polarization: Linear

Environmental Specifications

• Operating temperature:-40 to +85°C

Mechanical Specifications

• Dimensions: 71.4 ø x H15.3mm
• Cable: RG174 or others
• Connector: SMA Male
• Mounting Method: Magnetic
• Radome Material: ABS
