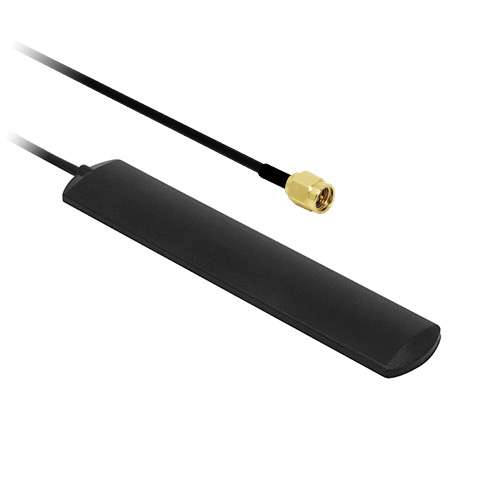

Alpha 17433MHz ISM Flat Blade Antenna

The Alpha 17 is a dedicated, adhesive mount, 433MHz ISM band antenna which combines good performance with a small size, enabling use with many of today’s remote control systems and 433MHz alarm systems.

Typical uses are alarm panel equipment, garage or gate remote controls and TETRA radio systems. Supplied as standard with an SMA Male connector and 2.5m cable.

Alternative cable lengths and connector types can be specified for volume orders.

Key Features

• 2.15dBi peak gain
• Dedicated to 433MHz
• Mounts on any non metallic surface
• TETRA Compatible
• Mounts discretely in installation, good for covert use
• Meets all EU compliance criteria for electronic goods
• Intended for internal equipment use

Electrical Specifications

• Operating temperature range: -20 – +65°C
• Impedance: 50 Ohm
• Gain: 2.15dBi
• VSWR: ≤1.5
• Max input power: 60W
• Frequency: 433MHz
• Polarization: Vertical

Mechanical Specifications

• Dimensions: L115 x W22 x H4mm
• Cable: RG174
• Connector: SMA Male
• Mounting: Adhesive
