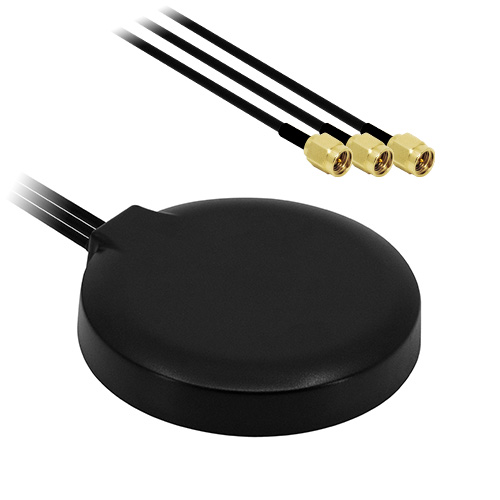

Alpha 22Combined, MIMO 2G, 3G, 4G, WiFi & GPS/GNSS Puck Antenna

The Alpha 22 combines 3 separate antennas into one compact and low profile package, capable of 4G (LTE) WiFi & GPS/GNSS. Designed for users who want an ‘all-in-one’ antenna rather than having to install three separate antennas.

The Alpha 22 is very compact solution for mobile vehicle interiors, in-building applications close to perimeter windows or protected exterior environments.

The GPS antenna covers a wide upper frequency band to cover the Galileo, GPS and GLONASS satellite positioning systems.

• 4G LTE, GPS/GNSS & WiFi combined
• Low profile design with Adhesive Base
• Galileo – GPS – GLONASS Coverage
• Combination design saves cost on purchase of additional antennas
• Combo design saves cost on installation of additional antennas


2G
GSM
3G
UMTS
4G
LTE
A
Adhesive
BLE
Bluetooth
GNSS
Position
GPS
Position
ISM
2450
MIMO
Antenna
MIMO
Multi Tech
WLAN
2400
ZB
Zigbee


RoHS
Compliant

Datasheets

Alpha 22 Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: ALPHA22/3M/SMAM/SMAM/SMAM/26
Description: Combined, MIMO LTE / WiFi & GPS/GNSS Puck Antenna 3M SMA Male Connectors

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders
