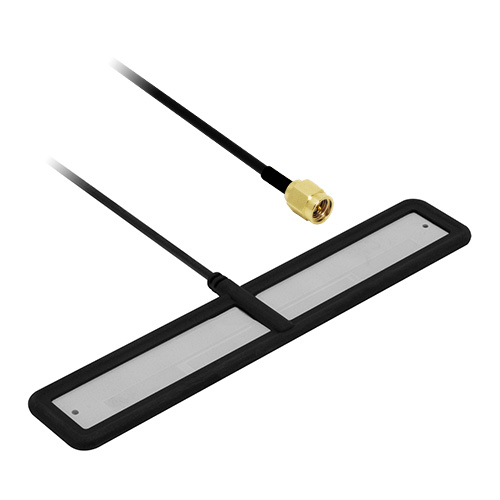

Alpha 405G 4G NB IoT and LoRa Adhesive T-bar Antenna

The Alpha 40 is a wideband adhesive mount dipole antenna designed for cellular and sub GHz IoT applications. It supports 5G NR, 4G LTE and NB IoT operation across a broad range of low and mid band frequencies, making it suitable for regional and global cellular networks
used by modern IoT devices.

The antenna also operates in the ISM 868 MHz and 915 MHz bands, providing compatibility with LoRa, Sigfox and other long range IoT systems. Its balanced dipole design is ground plane independent, and the flexible construction allows the antenna to conform to curved
or irregular surfaces. Adhesive mounting enables quick integration into compact enclosures, and the use of low loss cable helps maintain stable RF performance.

The Alpha 40 is well suited for metering, telematics, sensor devices and industrial platforms.

Key Features

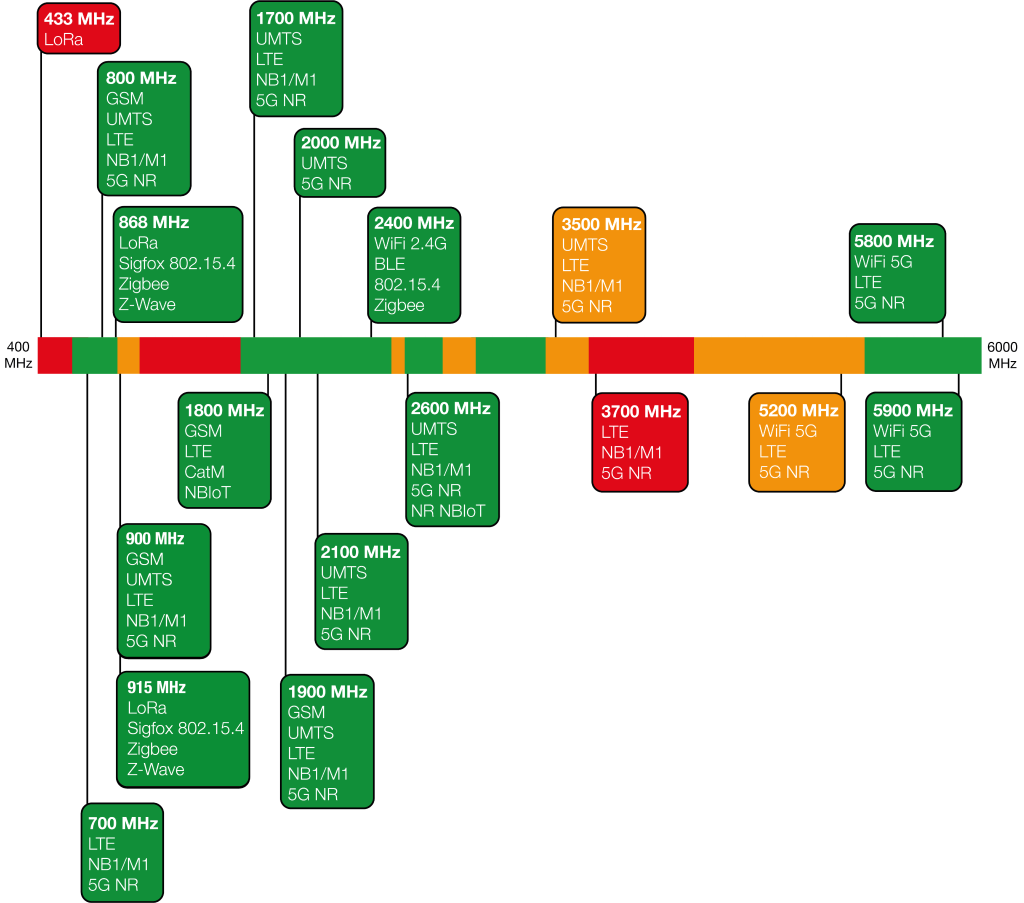

• Supports 5G NR / 4G LTE / 3G UMTS / 2G Quad-band GSM
• Supports LTE Cat M, LTE Cat NB and NR Cat NB Bands
• Supports LoRa / Zigfox / ISM 868 MHz / ISM 915 MHz
• Balanced dipole design – ground plane independent
• Flexible antenna construction suitable for fitting to large radius curved surfaces

Electrical Specifications

• Impedance: 50 Ohm
• Polarization: Vertical
• Max Input Power: 1 W
• Ground plane independent: Yes

Environmental Specifications

• Operating Temperature range: -30 to +60
• Storage Temperature range: -30 to +60

Mechanical Specifications

• Dimensions: 154.25 x 29.25 x 4.2 mm
• Weight: 59 g
• Connector: SMA Male
• Mounting method: Adhesive Pad
• Housing materials: PVC
