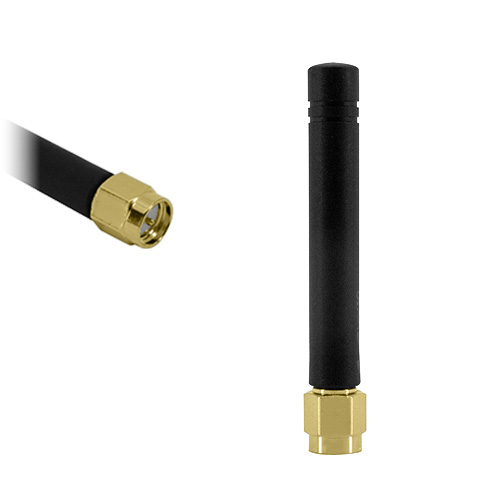

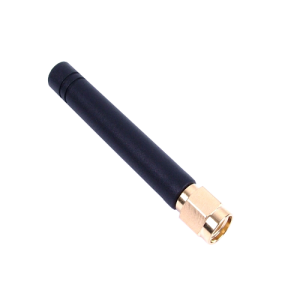

Delta 1A5G/4G & ISM 868 MHz 56mm Stubby Antenna

The Delta 1A Multiband antenna combines good performance with a small size, enabling its use with many of today’s GSM / GPRS (2G), UMTS (3G), LTE (4G/5G) and ISM 868 MHz band applications.

The omni-directional, radiating element is capped with a black high-grade rubber mould which allows flexibility and provides a rugged stylish finish.

Typical applications are Point of Sale Terminals, metering and alarm panel equipment.

  • Supports 5G NR / 4G LTE / 3G UMTS / 2G GSM
  • Supports LTE Cat M, LTE Cat NB, NR Cat NB bands
  • Supports WiFi 5GHz spectrum
  • Supports LoRa, Sigfox, ISM 868 MHz, IEEE 802.15.4
  • Groundplane independent

Delta 1A


2G
GSM
3G
UMTS
4G
LTE
5G
New Radio
D
Direct
HNT
Helium
ISM
5800
ISM
868
LTE
Cat M1
LTE
NB1
LoRa
Wireless
SF
Sigfox
W
Weightless
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WLAN
5800
z
wave


RoHS
Compliant

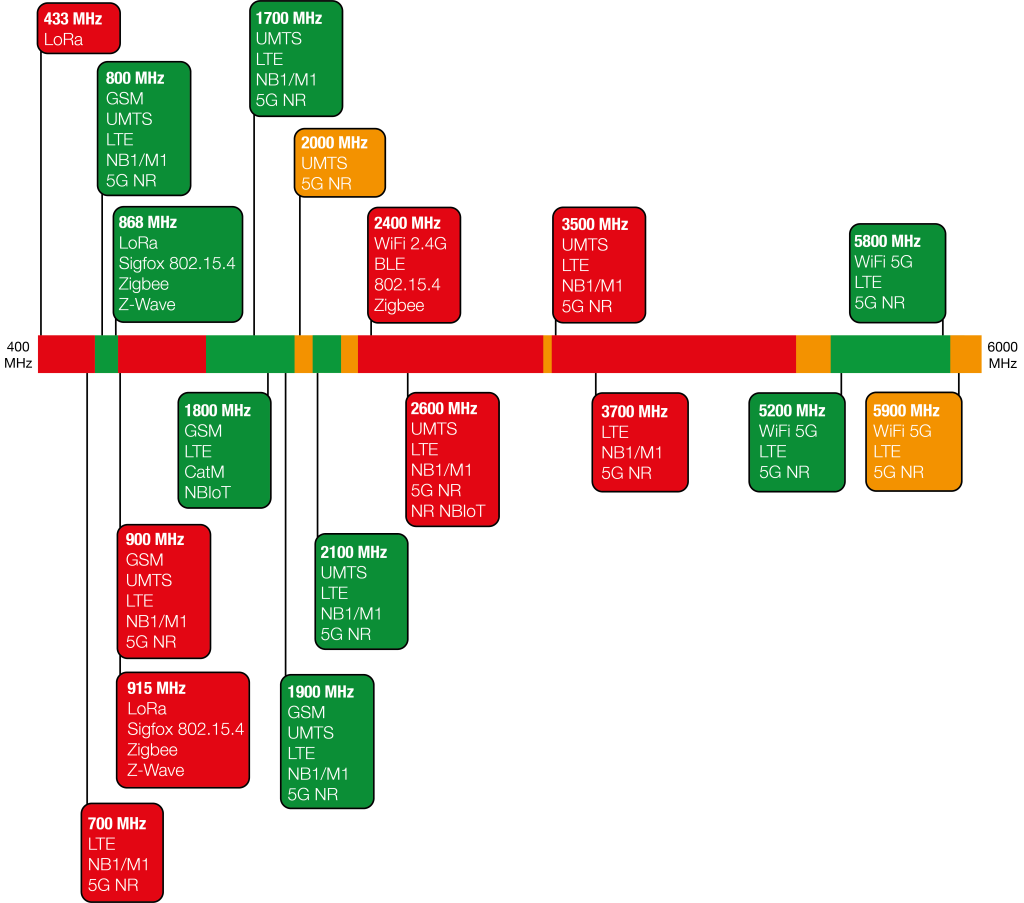

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheets

Delta 1A Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: DELTA1A/X/SMAM/S/S/11
Description: 5G/4G & ISM 868 MHz 56MM Stubby Antenna SMA Male

Request For Quote

Siretta Part Number: DELTA1A/X/SMAF/S/S/11
Description: 5G/4G & ISM 868 MHz 56MM Stubby Antenna SMA Female

Request For Quote
