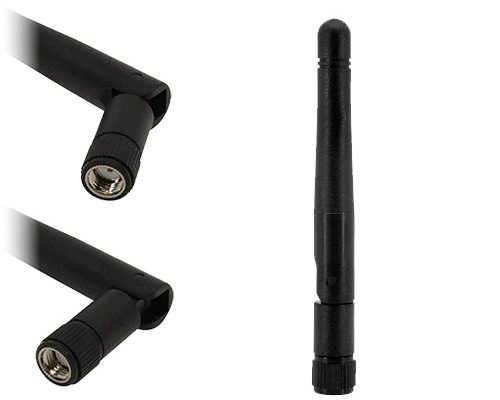

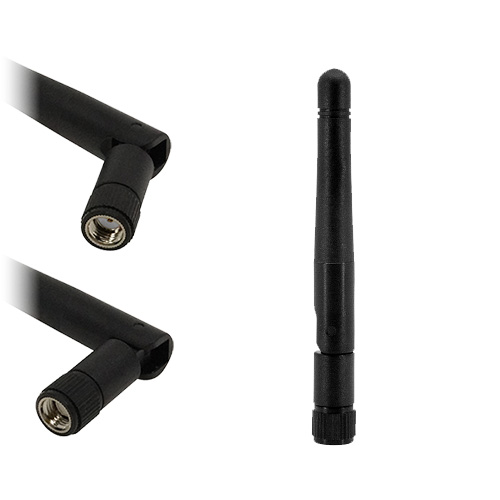

Delta 35High Gain 5G/4G Ultra Wideband 3-8 GHz Hinged Monopole Antenna

The Delta 35 is a hinged monopole antenna designed to be mounted directly onto your terminal equipment. Despite its small size, this antenna is designed to operate within a wide frequency range of 2.6 to 8 GHz.

With an excellent radiation efficiency, a low VSWR and a peak gain of 9 dBi, this antenna is a great choice for any UWB application such as high precision positioning management systems, sensor location collection and industrial automation.

The antenna also covers many of the popular 4G LTE and 5G NR frequencies in use today.

This antenna is supplied with either an SMA Male or Reverse Polarity SMA Male Connector as standard, however other connector types can be specified for high volume orders.

  • Supports 5G NR / 4G LTE / 3G UMTS Bands
  • Supports UWB frequencies between 2.6 – 8 GHz (UWB Bands 1-9)
  • Supports LTE Cat M, LTE Cat NB and NR Cat NB Bands
  • Supports ISM 5800 MHz Band
  • Omnidirectional monopole
  • Adjustable mount allows positioning for best signal
  • Ground Plane independent


3G
UMTS
4G
LTE
5G
New Radio
D
Direct
IEEE
802.15.4
ISM
5800
LTE
Cat M1
LTE
NB1
UWB
wideband
WLAN
5800


RoHS
Compliant

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 2000 MHz to 8000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheets

Delta 35 Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: DELTA35/SMAM/S/36
Description: High Gain 5G/4G Ultra Wide Band (UWB) 3-8 GHz 84 mm Hinged Monopole Antenna SMAM connector

Request For Quote

Siretta Part Number: DELTA35/SMAM/RP/S/36
Description: High Gain 5G/4G Ultra Wide Band (UWB) 3-8 GHz 84 mm Hinged Monopole Antenna RP-SMAM connector

Request For Quote

Alternative connector types can be specified for volume orders
