The Delta 6A multi-band whip antenna has excellent performance in the quad band GSM 800/900/1800/1900 frequencies, 3G, 4G and some 5G Bands.

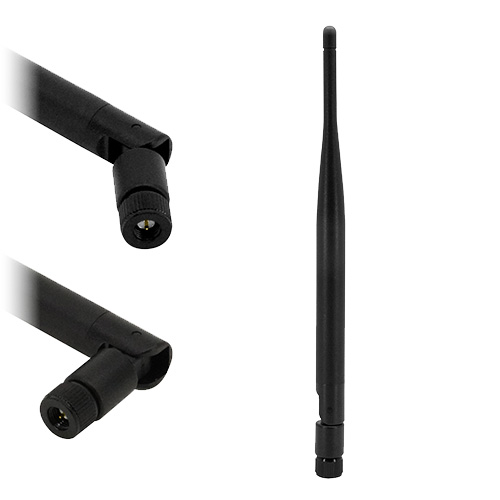

Terminated with an SMA Male or SMA-RP (reverse polarity) Male connector. The knuckle joint allows for antenna position adjustment through a 0, 45 & 90 degree angles and then swivels to allow vertical positioning.

Common IoT applications include: car park ticketing, utility metering, wireless key entry, security systems, remote monitoring and many other IoT applications.

• Quad band GSM / GPRS (2G)
• 3G, 4G & some 5G Bands
• ISM: 915 MHz
• Adjustable mount allows positioning for best signal

Delta 6A with alpha channel


2G
GSM
3G
UMTS
4G
LTE
5G
LTE
D
Direct
ISM
915
LTE
Cat M1
LTE
NB1


RoHS
Compliant

Datasheet

Delta 6A Datasheet

RF Antenna Test Data

RF Antenna Test Data Delta 6A

Handheld Antenna Test

DELTA 6A Snyper Graphyte Test

Antenna 2D Radiation Plot Guide

Antenna 2D Radiation Plot Guide

Antenna Technical Parameter Guide

Siretta Antennas 101 eBook

Ordering Information

Siretta Part Number: DELTA6A/X/SMAM/S/S/11
Description: 2G/3G/4G/(5G) & ISM 915MHz 196MM HINGED DIRECT CONNECT ANTENNA SMA MALE

Request For Quote
