Delta 6C5G/4G/3G/Dual band WiFi/Bluetooth/Zigbee Antenna

The Delta 6C antenna has excellent performance in the 2.4 GHz and 5.8 GHz  WLAN bands.

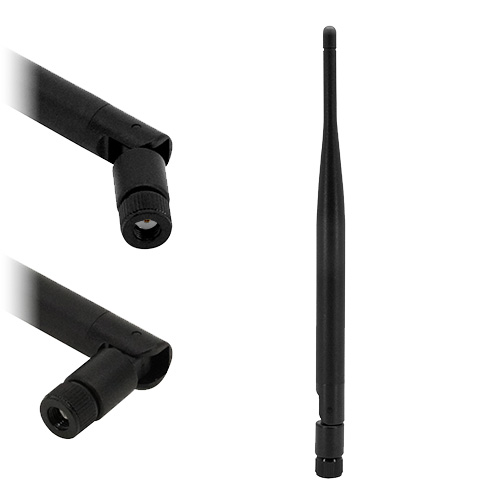

Terminated with an SMA or SMA-RP male connector, the knuckle adjusts through 0°, 45° & 90° angles and swivels 360° to enable the best signal to be obtained.

The Delta 6C is a popular antenna compatible with the 802.11a, 802.11b, 802.11g, 802.11n 802.11ac and 802.11ax WLAN standards.

It also works well on other wireless standards from 4G/5G cellular networks, Bluetooth, Zigbee to ISM2450 applications.

  • Supports 5G NR / 4G LTE / 3G UMTS
  • Supports LTE Cat M, LTE Cat NBIoT & NR Cat NBIoT
  • Supports Dual Band WiFi 4/5/6
  • Supports Bluetooth / Zigbee / ISM 2.4 GHz / WLAN2400 /
    IEEE 802.15.4 Bands
  • Supports ISM 5.8 GHz / WLAN5800 Bands
  • Adjustable antenna position
  • Omni-directional Compact Antenna


3G
UMTS
4G
LTE
5G
New Radio
BLE
Bluetooth
D
Direct
IEEE
802.15.4
ISM
2450
ISM
5800
LTE
Cat M1
LTE
NB1
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WLAN
2400
WLAN
5800
ZB
Zigbee


RoHS
Compliant

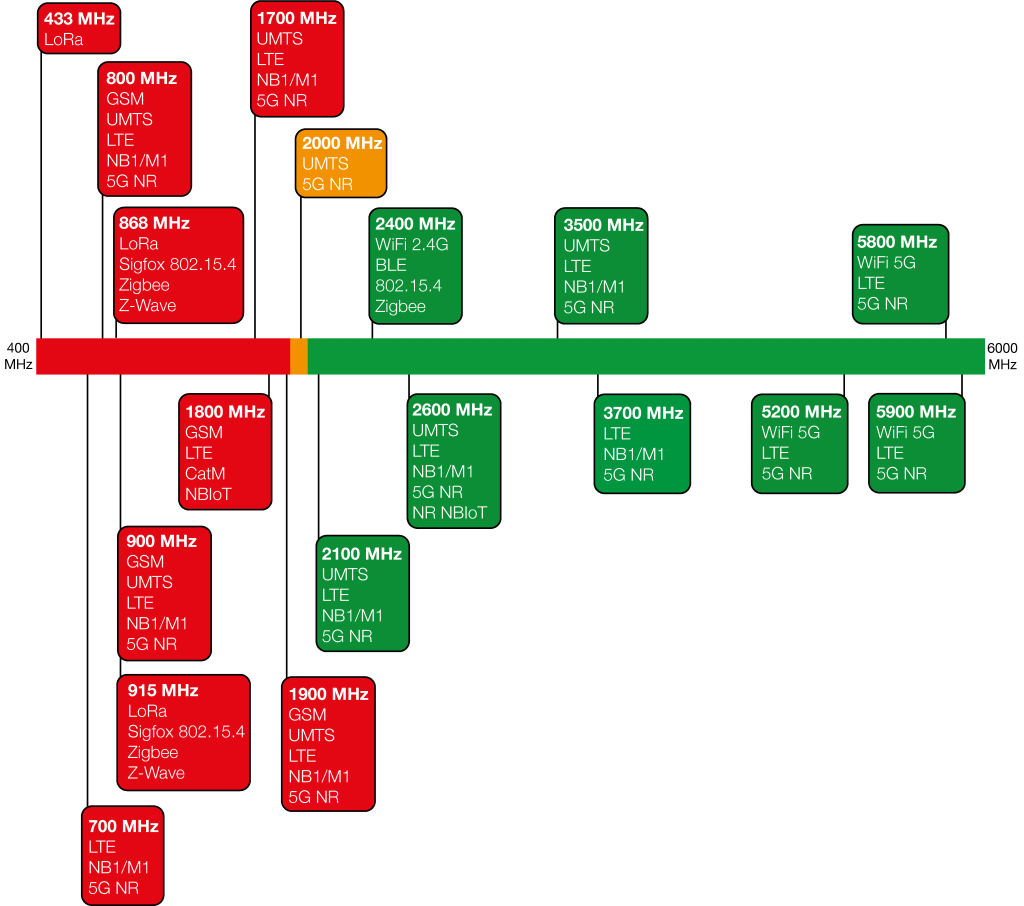

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheets

Delta 6C Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: DELTA6C/X/SMAM/S/S/11
Description: 5G/4G/3G/Dual band WiFi/Bluetooth/Zigbee Antenna SMA Male

Request For Quote

Siretta Part Number: DELTA6C/X/SMAM/RP/S/11
Description: 5G/4G/3G/Dual band WiFi/Bluetooth/Zigbee Antenna SMA Male Reverse Polarity

Request For Quote
