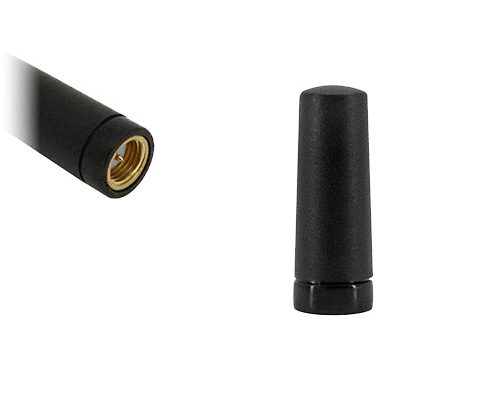

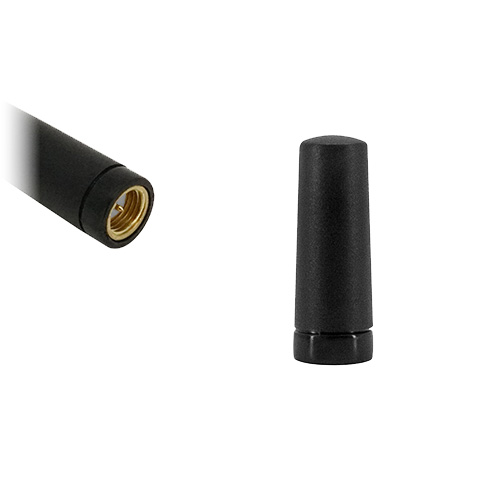

Delta 8A5G/4G & 2.4 GHz Wi-Fi 27mm Stubby Antenna

The Delta 8A is a ¼ wave antenna design with a loaded helical stub which results in efficient performance with minimal size.

The Delta 8A can be used for WiFi, Bluetooth and Zigbee applications that require an extremely compact antenna. In addition, LTE and New Radio bands are supported.

The Delta 8A is supplied, as standard, with an SMA male or Reverse Polarity SMA Male connectors.

  • Supports some 5G NR / 4G LTE bands
  • Supports WiFi 2.4 GHz spectrum
  • Supports Bluetooth, Zigbee bands
  • ¼ wave antenna
  • SMA male and Reverse Polarity connector
  • Small compact antenna
  • Ground Plane Independent


4G
LTE
5G
New Radio
AoA
Bluetooth
AoD
Bluetooth
BLE
Bluetooth
D
Direct
IEEE
802.15.4
ISM
2450
WLAN
2400
ZB
Zigbee


RoHS
Compliant

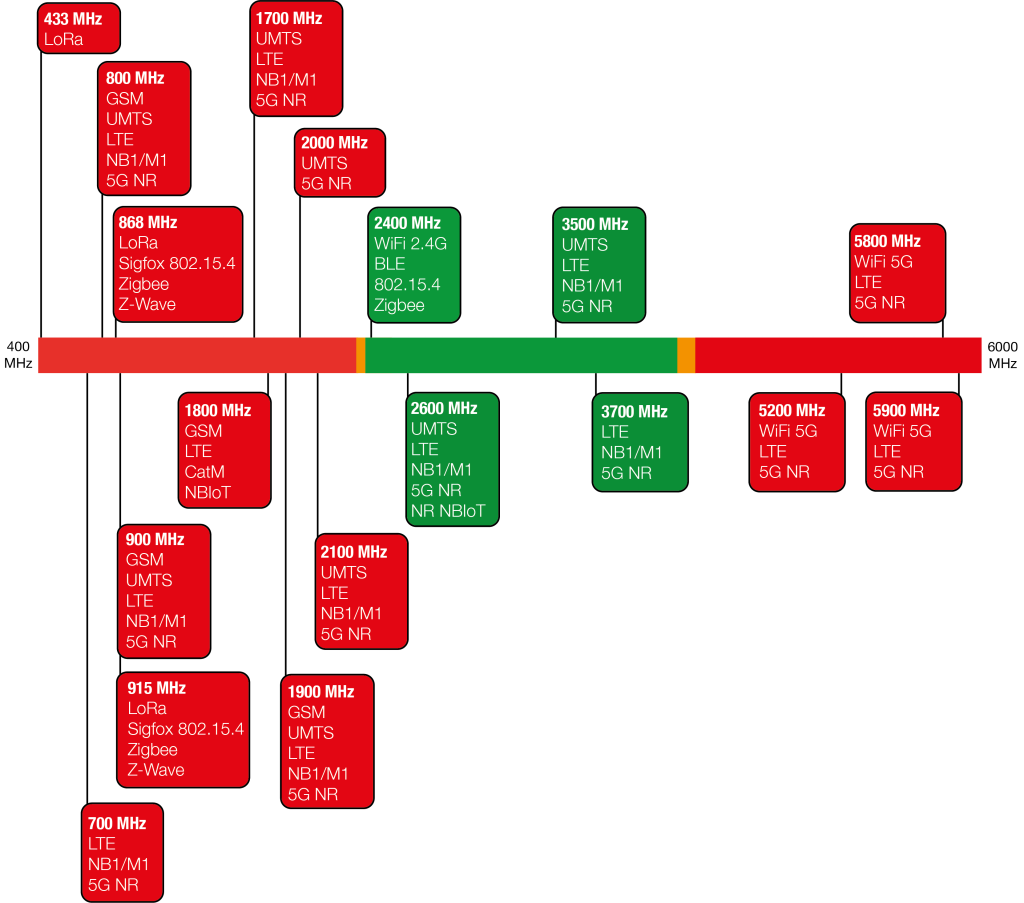

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheets

Delta 8A Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: DELTA8A/x/SMAM/S/S/17
Description: 5G/4G & 2.4 GHz Wi-Fi 27mm Stubby Antenna SMA Male

Request For Quote

Siretta Part Number: DELTA8A/x/SMAM/S/RP/17
Description: 5G/4G & 2.4 GHz Wi-Fi 27mm Stubby Antenna SMA Male Reverse Polarity

Request For Quote

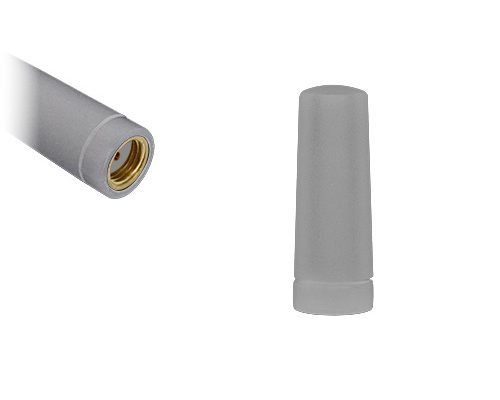

Siretta Part Number: DELTA8A/x/SMAM/RP/S/17 – GREY
Description: 5G/4G & 2.4 GHz Wi-Fi 27mm Stubby Antenna SMA Male Reverse Polarity Grey Radome

Request For Quote
