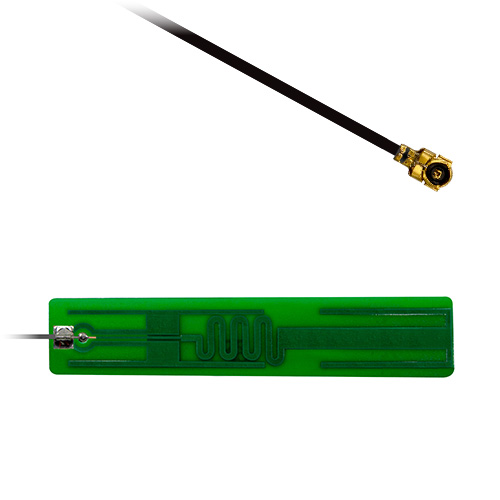

The Echo 14 is a multipurpose PCB embedded antenna with a wide operating frequency band which makes it suitable for a host of wireless IoT applications.

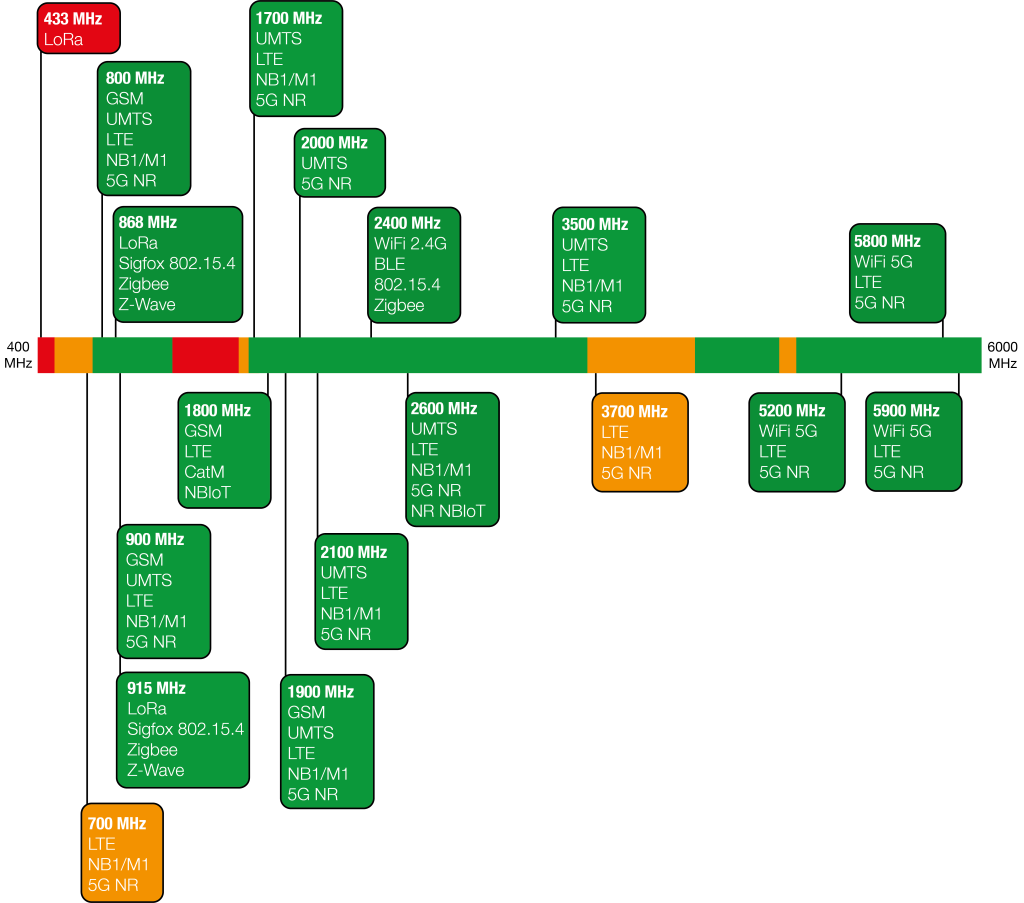

It has compatibility with worldwide cellular applications over the quad band GSM/GPRS (2G) networks and also with 3G UMTS, 4G LTE and a wide range of 5G LTE Bands

In addition to the cellular coverage the antenna also provides dual band WiFi coverage.

• Groundplane independent
• Wide frequency range
• Excellent gain within upper frequency band

Echo14 with alpha channel


2G
GSM
3G
UMTS
4G
LTE
5G
LTE
E
Embedded
ISM
868
ISM
915
LoRa
Wireless
SF
Sigfox
WLAN
2400
WLAN
5800

Datasheet

Echo 14 Datasheet

Handheld Antenna Test

ECHO 14 Snyper Graphyte Test

Antenna 2D Radiation Plot Guide

Antenna 2D Radiation Plot Guide

Antenna Technical Parameter Guide

Siretta Antennas 101 eBook

Ordering Information

Siretta Part Number: ECHO14/0.1M/UFL/S/S/15
Description: 2G/3G/4G/5G & WIFI PCB Antenna UFL/IPEX Connector 100mm cable

Request For Quote

Siretta Part Number: ECHO14/0.2M/UFL/S/S/15
Description: 2G/3G/4G/5G & WIFI PCB Antenna UFL/IPEX Connector 200mm cable

Request For Quote

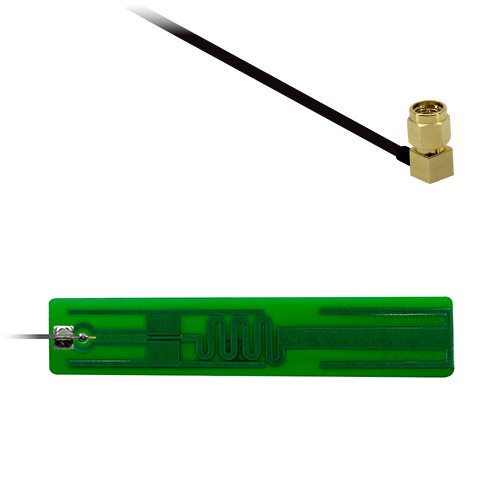

Alternative cable lengths and connector types can be specified for small volume orders
