Echo 1A5G / 4G Compact PCB Embedded Antenna

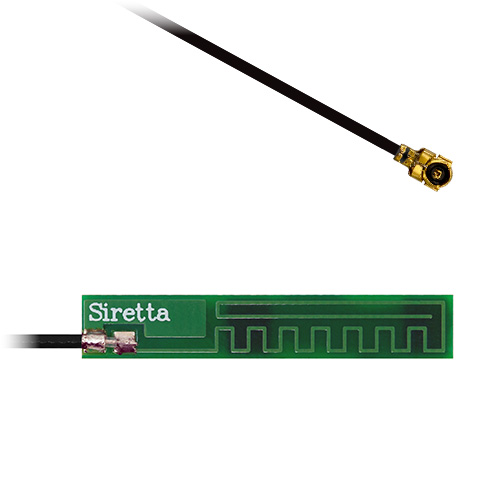

The Echo 1A is an efficiently tuned PCB antenna that is suited to a wide variety of RF & IoT modules operating on ISM, 2G/3G/4G and some 5G frequency bands.

Proven in many embedded applications, it is ground plane independent and compact making it a popular choice where a small size is important.

Alternative connectors and cable lengths may be specified for small volume orders.

• Compact size
• Quad band GSM/GPRS (2G), 3G and 4G
• Some 5G LTE Band Coverage


2G
GSM
3G
UMTS
4G
LTE
5G
New Radio
E
Embedded
ISM
5800
LTE
Cat M1
LTE
NB1


RoHS
Compliant

Spectral Frequency Diagram

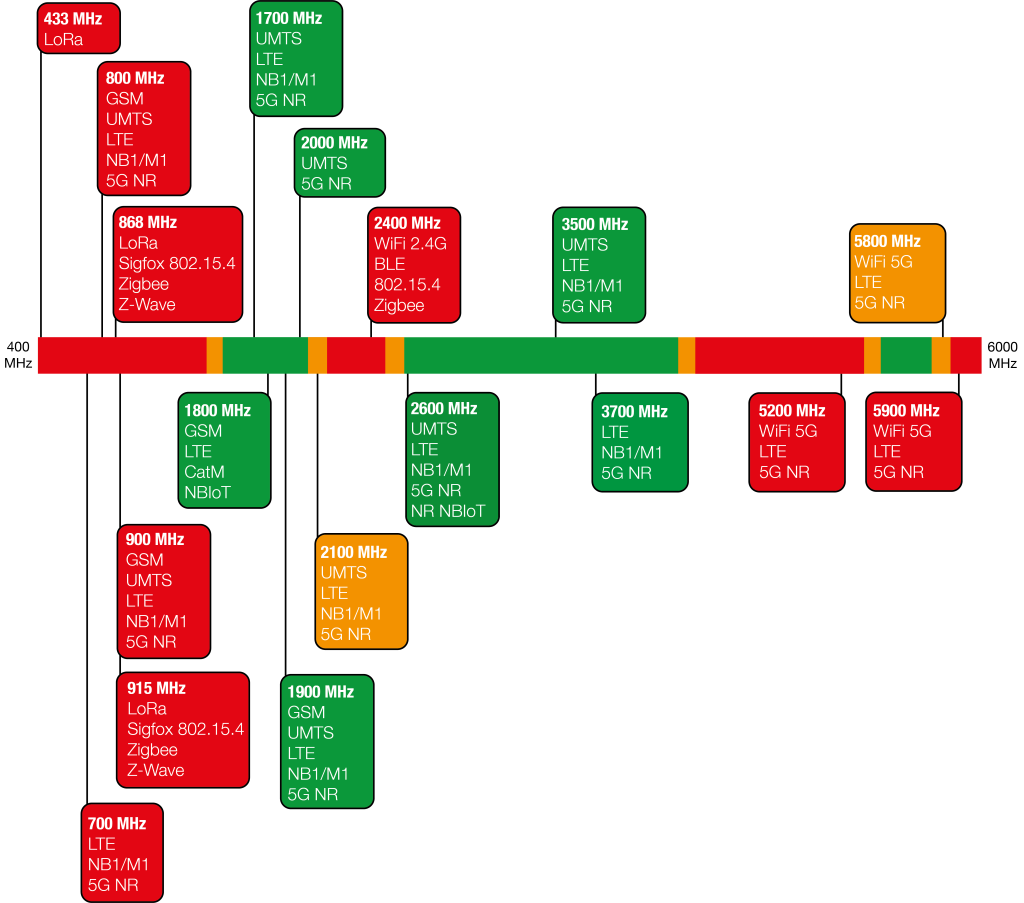

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheets

Echo 1A Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots

Ordering Information

Siretta Part Number: ECHO1A/0.15M/IPEX/S/S/11
Description: 5G/4G Compact PCB Embedded Antenna I-PEX Connector 150mm Cable

Request For Quote

Siretta Part Number: ECHO1A/0.15M/SMAM/S/S/11
Description: 5G/4G Compact PCB Embedded Antenna SMA Male Connector 150mm Cable

Request For Quote

Siretta Part Number: ECHO1A/0.1M/IPEX/S/S/11
Description: 5G/4G Compact PCB Embedded Antenna I-PEX Connector 100mm Cable

Request For Quote

Siretta Part Number: ECHO1A/0.1M/SMAM/S/S/11
Description: 5G/4G Compact PCB Embedded Antenna SMA Male Connector 100mm Cable

Request For Quote

Siretta Part Number: ECHO1A/0.2M/IPEX/S/S/11
Description: 5G/4G Compact PCB Embedded Antenna I-PEX Connector 200mm Cable

Request For Quote

Alternative cable lengths and connector types can be specified for small volume orders
