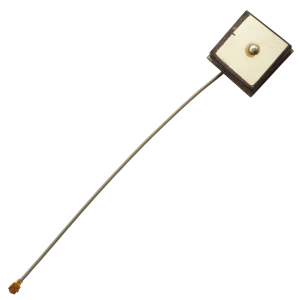

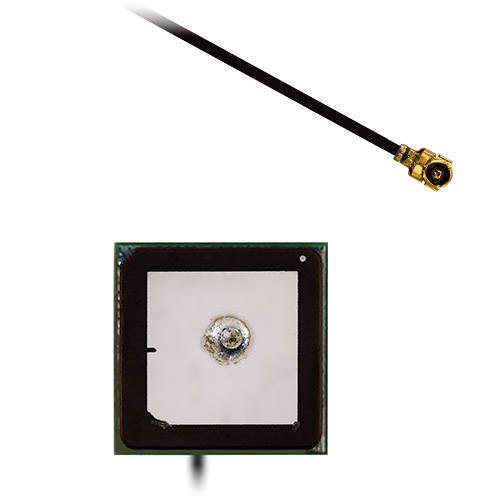

Echo 26A18 x 18 mm GPS Ceramic Patch Antenna

The Echo 26A is GPS antenna with a built in Low Noise Amplifier (LNA) for embedded applications.

This antenna produces an impressive peak gain of 27dB from the LNA, developing a strong signal that influences the speed of acquiring satellites.. Common applications include: vehicle/fleet/asset tracking, mobile applications and general position services.

Cable length and connector variations possible for small volume orders.

Key Features

• Low voltage low current consumption
• LNA gain of 27dB
• Centre frequency of 1575.42MHz
• Strong signal reduces satellite fix time
• Ceramic filter to reduce noise
• Meets all EU Criteria for electronic goods

Electrical Specifications

• Impedance: 50 Ohm
• LNA Gain: 27 dB Typical
• VSWR: <2.0 :1 Max
• Supply voltage: 2.3~5.5 V DC
• Current consumption:
  • 2.5V – 6.6 mA
  • 3V – 8.6 mA
  • 4V – 12.6 mA
  • 5V – 16 mA
• Centre frequency: 1575.42 MHz ± 1.023 MHz
• Bandwidth: 10 MHz
• Polarization: RHCP
• Noise figure: 1.5 dB typ
• Ex-band attenuation SAW:
  • 30 dB min @fo±50 MHz
  • 35 dB min @fo±100 MHz

Environmental Specifications

• Operating temperature: -40 to +90 °C
• Relative humidity: 10 to 95 %

Mechanical Specifications

• Dimensions: 19.7 x 19.6 x 6.6 mm
• Cable: 1.13 mm
• Connector: IPEX
