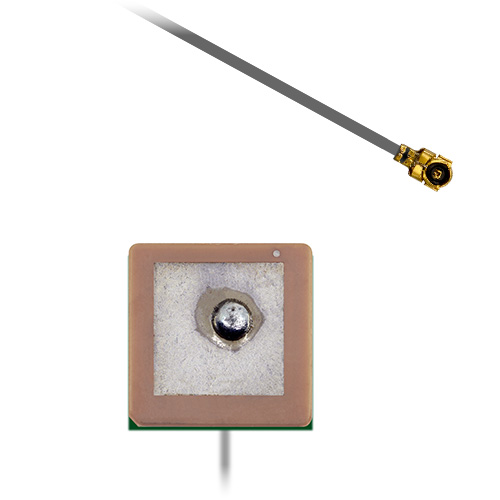

Echo 2715 x 15mm GPS Internal Active Antenna

The Echo 27 is a GPS embedded ceramic patch antenna that combines excellent performance characteristics with a low operating voltage. This updated V2 version provides a huge 5dBi LNA amplifier gain over the predecessor.

With a built in LNA giving 27dB gain from just 6.6mA current consumption and operating between 2.3 and 5.5V DC this combination is ideally suited to low power applications.

Supplied as standard with 100mm coax cable and terminated with a uFL/IPEX connector. Alternative cable lengths and connector types can be specified for volume orders.

• Active GPS
• LNA gain of 27dB
• Centre frequency of 1575.42MHz


E
Embedded
GPS
Position


RoHS
Compliant

Datasheets

Echo 27v2 Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots

Ordering Information

Siretta Part Number: ECHO27/0.1M/IPEX/S/S/15
Description: GPS Internal Active Antenna, 100mm Cable, IPEX Connector

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders
