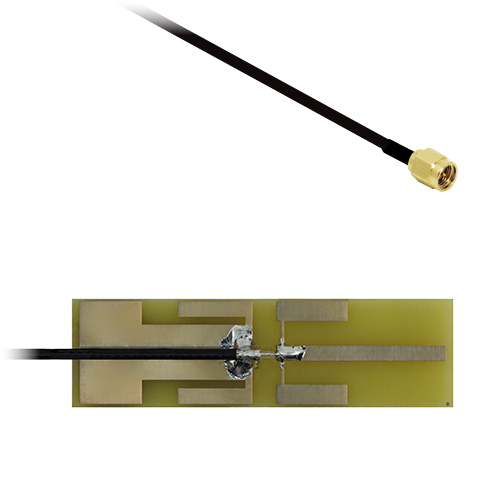

Echo 31Dual Band WiFi / WLAN PCB Antenna

The Echo 31 is a Dual Band WiFi / WLAN dedicated PCB antenna. This multiband antenna comes into its own when a congested 2.4Ghz network is a limitation and the device can utilise the 5GHz alternative band. The Echo 31 antenna can be used with WiFi, Bluetooth, Zigbee and ISM based applications.

With a small footprint size of 50 x 15mm, the Echo 31 is perfect for those applications where internal space for components is limited or when using an external antenna is simply not appropriate. Common applications for the Echo 31 include: waterproof / water tight designs, customer self service kiosks, and low power Zigbee.

• Dual Band WiFi / WLAN – 2.4GHz / 5GHz
• Bluetooth / ZigBee
• Embedded Solution


BLE
Bluetooth
E
Embedded
ISM
2450
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WLAN
2400
WLAN
5800
ZB
Zigbee


RoHS
Compliant

Datasheets

Echo 31 Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots

Ordering Information

Siretta Part Number: ECHO31/0.5M/SMAM/S/S/17
Description: Dual Band WiFi / WLAN PCB Antenna 500mm SMA Male

Request For Quote

Siretta Part Number: ECHO31/0.5M/SMAM/RP/S/17
Description: Dual Band WiFi / WLAN PCB Antenna 500mm SMA Male Reverse Polarity

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders
