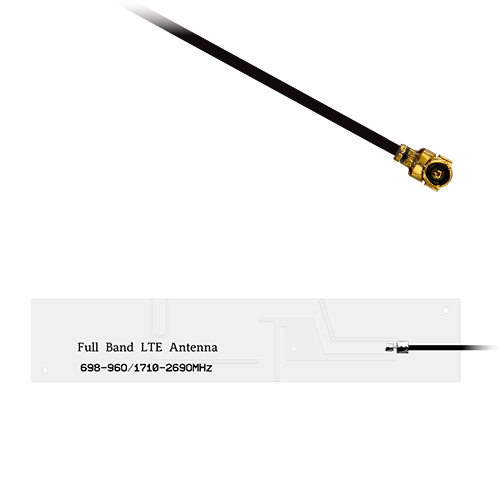

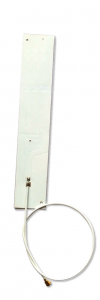

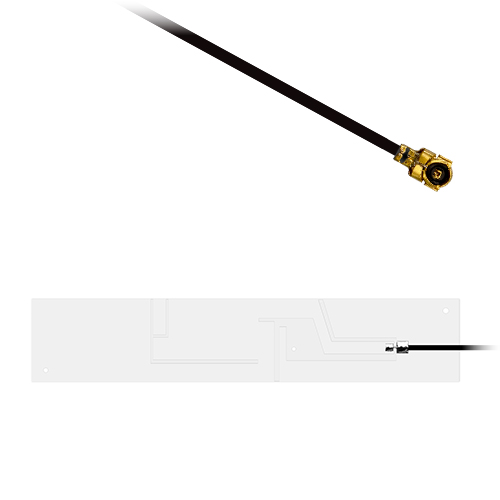

Echo 362G/3G/4G & WiFi Embedded FPC Antenna

The Echo 36 is an embedded wide-band FPC antenna with a good peak gain performance. The wide-band allows for a migration plan from one technology to another; 2G to 3G to 4G, or simply the choice to select a technology depending on usage.

Typically supplied with a uFL/IPEX connector and a short tail of cable. Alternative cable lengths and connectors can be specified for volume orders.

Key Features

• Wide Bandwidth Antenna
• Peak Gain 3dBi
• Designed for embedded applications
• Small format design for applications with limited space
• Meets all EU compliance criteria for electronic goods
• Flexible ultra thin circuit board
• Mount on plastic surface for best performance

Electrical Specification

• Temperature range: -30° to +75°C
• Peak Gain: 3 dBi
• VSWR: < 3.0:1
• Impedance: 50 Ohm
• Frequency Bands:
  • 698 – 960 MHz
  • 1710 – 2700 MHz
• Polarization: Linear

Mechanical Specifications

• Dimensions: 110mm x 21mm x 0.2mm (without cable and connector)
• Cable: 100mm x 1.13mm coax
• Connector: UFL/IPEX
• Mounting method: Designed for embedded use
