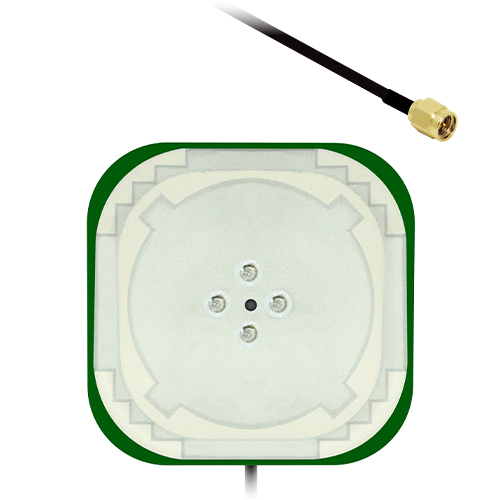

Echo 50Embedded Active L1, L2, L5 & L6 GNSS Antenna

The Echo 50 is an active high-precision GNSS antenna designed for exceptional multi-constellation performance across all GPS, GLONASS, BeiDou, Galileo, NavIC, and QZSS bands. Integrated with a high-quality low noise amplifier, it delivers enhanced sensitivity and ensures reliable reception in challenging environments. With wideband support and low axial ratio, it enables sub-meter positional accuracy, and when paired with RTK corrections, centimetre-level precision is achievable.

Exceptional axial ratio, high gain, and pattern stability are achieved through the use of two orthogonal feeds in each patch, merged via a hybrid coupler. This ensures that the antenna delivers solid GNSS performance in challenging reception environments.

Supplied with a 0.1 m cable and SMAM, I-PEX MHF1, or MHF4 connector as standard, customised options are also available for high-volume orders.

Key Features

• Covers all major GNSS bands worldwide, improving accuracy, reducing multipath errors and increasing satellite availability.
• Active design with integrated LNA giving 23 ± 2 dB gain and ≤ 1.5 dB noise figure.
• Low VSWR across all bands (1.42 – 1.97), minimising signal loss.
• Axial ratio as low as 0.02 dB at zenith for excellent circular polarisation.
• Peak RHCP gain up to 27.19 dBiC for strong signal lock.
• Compact embedded form for easy integration.

Additional Considerations

• Results shown are based on anechoic chamber test in free space with 0.1M Cable and an SMA Male connector
• Magnetic mount and adhesive mount outdoor options with plastic enclosure available through customisation

Typical Applications

• Land and hydrographic surveying
• Precision agriculture and machine guidance
• UAV photogrammetry and aerial mapping
• Autonomous vehicle navigation and control
• Geotechnical and structural monitoring

Electrical Specifications

• Impedance: 50 Ω
• Polarisation: RHCP
• Frequency Range: 1176.45 – 1602 MHz
• Axial Ratio: ≤ 3 dB
• VSWR: ≤ 2
• Ground Plane Independent: Yes
• RHCP Gain: 23 ± 2 dB
• Noise Figure: ≤ 1.5 dB
• Supply Voltage: 3 – 12 V DC
• Current Consumption: ≤ 50 mA

Environmental Specifications

• Operational Temperature Range: –40 °C to +85 °C
• Storage Temperature Range: –40 °C to +85 °C
• Humidity: Up to 95% RH

Mechanical Specifications

• Dimension: 60 × 60 × 18.8 mm
• Weight: 52 g
• Material: Stacked Ceramic Patch
• Connector: SMAM / I-PEX MHF1 / I-PEX MHF4 (other custom options available for high volume orders)
• Cable: RG174 (For SMA Variants) / OD 1.13 mini coax (for I-PEX connectors)
• Mounting Methods: Embedded (Enclosure with Magnetic or Adhesive mounting option avaiable on request)
