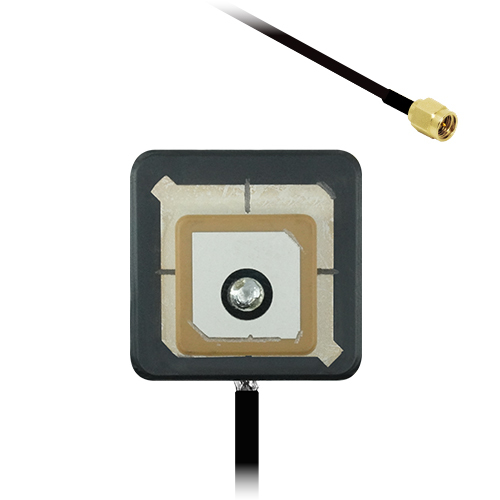

Echo 52Embedded Active Multi-Constellation GNSS L1/L2/L5 Ceramic Patch Antenna

The Echo 52 is an embedded multi-band GNSS antenna that delivers high accuracy positioning across the L1 (1575 MHz), L2 (1227 MHz) and L5 (1176 MHz) bands. It supports all major constellations including GPS, Galileo, BeiDou, QZSS and NavIC, enabling broad global compatibility for navigation, location and timing applications.

Its stacked ceramic patch structure and two-stage LNA provide strong RHCP gain with excellent axial purity, yielding robust performance even in low-signal or multipath environments. The antenna’s directional pattern ensures maximum efficiency in the upper hemisphere, making it ideal for embedded GNSS modules and compact systems requiring precision tracking or RTK capability.

Available with MHF1/UMCC/U.FL or SMA connectors and 1.13 mm miniature coax cable as standard. Alternative lengths and connector types can be specified for high-volume orders.

Key Features

• Covers GPS (L1, L2, L5), Galileo (E1, E5a), BeiDou (B1C,
  B2a), QZSS (L1, L5) and NavIC (L5) bands
• Integrated 2-stage Low Noise Amplifier for strong signal
  reception and low noise figure (≤ 1.3 dB)
• Top-hemisphere RHCP gain up to 25 dBiC peak and 21 dBiC
  average
• Wideband coverage across 1176 MHz, 1227 MHz and 1575
  MHz bands with VSWR ≤ 1.5
• Compact 25 × 25 × 12.5 mm embedded ceramic design,
  ground-plane independent
• MHF1 / UMCC / U.FL / SMA connector options with 1.13 mm
  mini coax cable

Typical Applications

• High-precision GNSS receivers and RTK modules
• UAV and drone navigation systems
• Automotive and smart transport applications
• Asset and fleet tracking devices
• Timing and synchronisation equipment

Electrical Specifications

• Impedance: 50 Ω
• Polarisation: RHCP
• Frequency Range:
  • 1176.45 MHz (L5 / E5a / B2a / L5 NavIC)
  • 1227.6 MHz (L2 / B2)
  • 1575.42 MHz (L1 / E1 / B1C)
• VSWR: ≤ 1.5
• Ground Plane Independent: Yes
• RHCP Gain (Top Hemisphere): 21 ± 2 dBiC (avg), 25 ± 1 dBiC (peak)
• Noise Figure: ≤ 1.3 dB
• Input Voltage: 2.7 – 3.3 V DC (typ. 3.0 V)
• Current Consumption: 10 ± 2 mA @ 3.0 V (≤ 15 mA @ 3.3 V)

Environmental Specifications

• Operational Temperature Range: –40 °C to +85 °C
• Storage Temperature Range: –40 °C to +85 °C
• ESD Protection: 2 kV HBM
• Ingress Protection: None

Mechanical Specifications

• Dimension: 25.1 × 25.1 × 12.5 mm
• Weight: 18.5 g
• Material: Stacked Ceramic Patch (Upper Yellow / Lower Black)
• Connector: MHF1 / UMCC / U.FL / SMA Male
• Cable: 1.13 mm mini coax
• Mounting Methods: Embedded – adhesive or mechanical fixing (adhesive not supplied)
