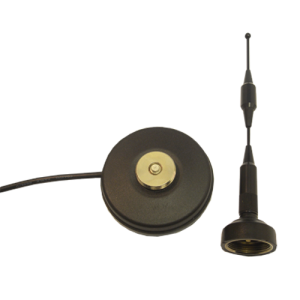

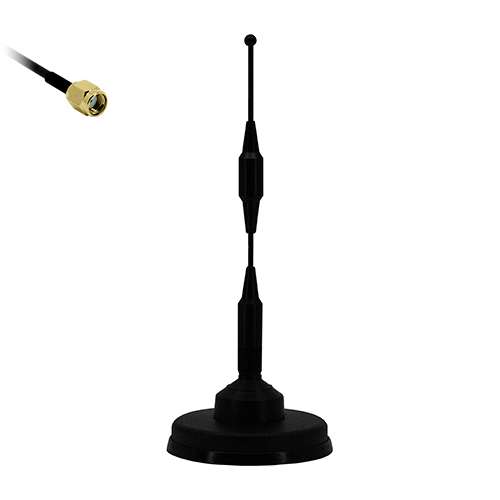

Mike 12WiFi Magnetic Mount Whip Antenna

The Mike 12 is a ½ wave, high gain mag mount whip antenna, tuned to the WiFi/Bluetooth/Zigbee frequencies. With a high peak gain of 5dBi, the Mike 12 is a great antenna for demanding applications.

Its magnetic base provides a versatile method of mounting, allowing the user to move the antenna to optimise signal strength. Common applications for this antenna are ‘secure compound’ IoT applications with sensors connected via ZigBee,
home automation remote controls, WiFi extensions and peer to peer Bluetooth links; especially those in low signal areas.

Alternative connectors and cable lengths can be specified for volume orders.

Key Features

• WiFi / WLAN – 2.4GHz
• Magnetic Mount
• High Peak Gain of 5dBi
• Flexibility to reposition for best signal
• Suitable for IoT Applications
• Meets all EU compliance criteria for electronic goods

Electrical Specifications

• Operating temperature: -30 – +70°C
• Impedance: 50 Ohm
• Peak Gain: 5.0dBi
• VSWR: ≤1.8:1
• Frequency Range: 2.4GHz
• Max Power: 20 W
• Radiation: Omni

Mechanical Specifications

• Dimensions: 84mm Ø H: 214.8mm
• Cable:RG58
• Weight: 180 g
• Connector: SMA Male
• Mounting Method: Magnetic
• Material: Stainless steel & ABS
