Mike 16Combined 2G/3G plus GPS Magnetic Antenna

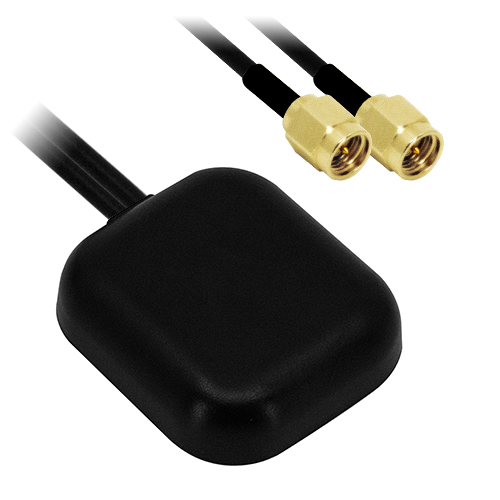

The Mike 16 magnetic mount MIMO antenna has a cellular and GPS antenna built in. Covering 2G and 3G cellular frequencies along with standard GPS coverage.Typical applications for this antenna are mobile vehicle tracking and data logging.

A variety of connector options and cable lengths are available and others can be specified for volume orders

Key Features

• 2G/3G Plus GPS Coverage
• (4G Coverage at 800MHz)
• 2dBi Peak Gain Cellular Antenna
• 28dB LNA GPS Gain
• 28dB GPS LNA Gain
• Covers 4G at 800MHz
• Meets all EU compliance criteria for electronic goods

Electrical Specifications

• Operating temperature: -10 – +60°C
• Impedance: 50 Ohm
• Peak Gain: 3.0dBi @2.47GHz (excluding cable loss)
• VSWR: ≤2.5:1
• Frequency Range: 824-960, 1710-2170MHz
• Radiating Element: Whip
• Polarization: Linear

GPS Electrical Specifications

• Center Frequency: 1575.42 MHz
• Bandwidth: CF +/- 5MHz
• Polarization: RHCP
• VSWR: ≤1.5
• Axial Ratio: 3dB Max
• LNA Gain: 28 +/- 2dB
• Supply Voltage: 2.2~5V DC
• Current Consumption: 5~15mA

Mechanical Specifications

• Dimensions: 53 x 60 x 15mm
• Cable: RG174
• Connector: SMA
• Mounting: Magnetic
