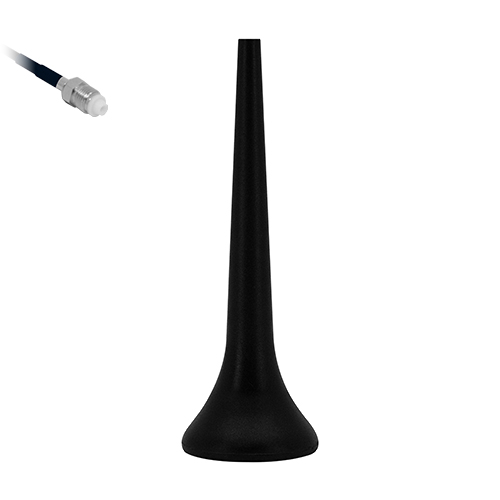

The Mike 1A magnetic mount antenna is a popular, versatile antenna used by many users of 2G (GSM/GPRS), 3G, 4G and 5G applications.

Typical applications for this antenna are utility metering, alarm panels and sensor monitoring.

A variety of connector options and cable lengths are available, and others can be specified for small volume orders.

  • Supports 5G NR / 4G LTE / 3G UMTS / 2G GSM
  • Supports LTE Cat M, LTE Cat NB, NR Cat NB
  • Supports Dual-Band WiFi 2.4 GHz & 5 GHz Bands
  • Supports Bluetooth and BLE, Zigbee, ISM 2.4 GHz, &  IEEE 802.15.4 bands
  • Supports LoRa, Sigfox, IMT 868 MHz, ISM 915 MHz bands
  • Magnetic mount

mike-1A


2G
GSM
3G
UMTS
4G
LTE
5G
New Radio
BLE
Bluetooth
IEEE
802.15.4
ISM
2450
ISM
868
ISM
915
LoRa
Wireless
M
Magnetic
SF
Sigfox
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WIFI
2.4G & 5G
WLAN
2400
ZB
Zigbee
z
wave


RoHS
Compliant

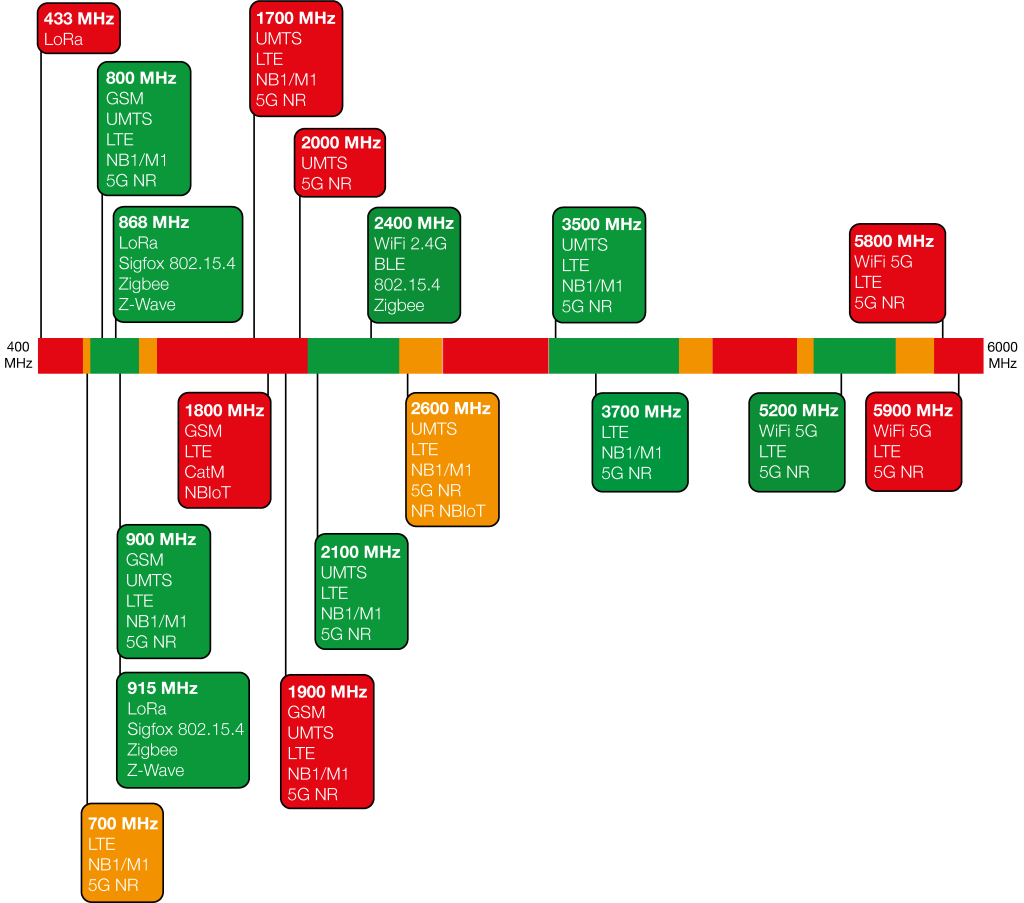

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheet

Mike 1A Datasheet

Handheld Antenna Test

Mike 1A Snyper Graphyte Test

Antenna 2D Radiation Plot Guide

Antenna 2D Radiation Plot Guide

Antenna Technical Parameter Guide

Siretta Antennas 101 eBook

Ordering Information

Siretta Part Number: MIKE1A/1.2M/SMAM/S/S/20
Description: 5G/4G/3G/2G/Dual Band WiFi/Bluetooth/Zigbee/LoRa STUBBY MAGMOUNT ANTENNA SMA MALE CONNECTOR 1.2M CABLE

Request For Quote

Siretta Part Number: MIKE1A/2.5M/SMAM/S/S/20
Description: 5G/4G/3G/2G/Dual Band WiFi/Bluetooth/Zigbee/LoRa STUBBY MAGMOUNT ANTENNA SMA MALE CONNECTOR 2.5M CABLE

Request For Quote

Siretta Part Number: MIKE1A/2.5M/FMEF/S/S/20
Description: 5G/4G/3G/2G/Dual Band WiFi/Bluetooth/Zigbee/LoRa STUBBY MAGMOUNT ANTENNA FME FEMALE CONNECTOR 2.5M CABLE

Request For Quote

Siretta Part Number: MIKE1A/5M/FMEF/S/S/20
Description: 5G/4G/3G/2G/Dual Band WiFi/Bluetooth/Zigbee/LoRa STUBBY MAGMOUNT ANTENNA FME FEMALE CONNECTOR 5M CABLE

Request For Quote

Siretta Part Number: MIKE1A/5M/SMAM/S/S/20
Description: 5G/4G/3G/2G/Dual Band WiFi/Bluetooth/Zigbee/LoRa STUBBY MAGMOUNT ANTENNA SMA MALE CONNECTOR 5M CABLE

Request For Quote

Alternative cable lengths and connector types can be specified for small volume orders
