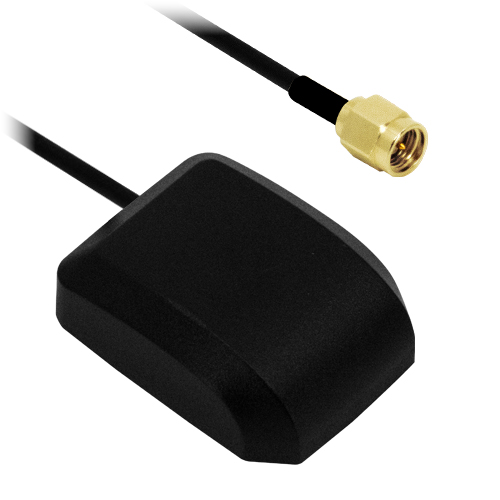

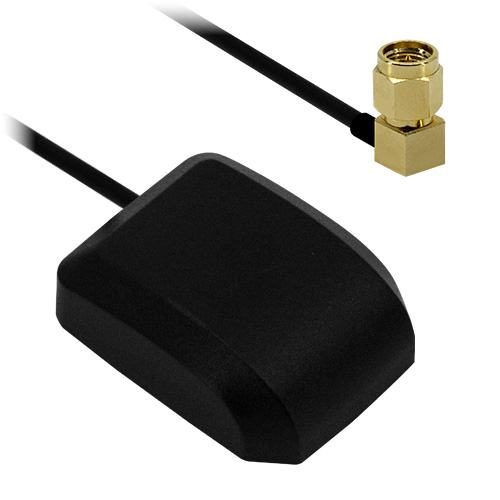

Mike 3AGPS IP67 Magnetic Mount Antenna

The Mike 3A is a compact dual mount GPS antenna, tuned to 1575.42MHz Band L1. Dual mounting: with its magnetic base and separate adhesive pad, the Mike 3A can be mounted onto a diverse range of surfaces.

The weather resistant design, tested to IP67, make it an ideal outdoor GPS antenna that can be used for a host of different GPS applications including: vehicle/fleet/asset tracking and mobile applications.

The built in Low Noise Amplifier (LNA) provides a 28dB gain producing stronger signals which reduce satellite fix times.

Key Features

• 28dB LNA gain
• Weather Resistant
• Dual mount
• Ground plane independent
• Improves signal to noise ratio for mobile applications
• Mixed mounting – magnetic or adhesive pad
• Meets all EU compliance criteria for electronic goods

Dielectric Antenna

• VSWR: 1.5:1
• Impedance: 50 Ohms
• Centre Frequency: 1575.42 MHz
• Peak Gain: >3dBic (Based on 7 x 7cm Ground plane)
• Gain Coverage: >4dBic at 90˚
• Polarization: RHCP

GPS Antenna

• LNA Gain: 28 dB Typical
• Noise Figure: 1.5 dB
• Connector: SMA Male
• VSWR: <2.0
• DC Voltage: 3.0 V – 5.0 V
• DC Current: 10 mA Max

Environmental Specifications

• Operating Temperature: -40 – +85 ˚C
• Storage Temperature: -45 – +100 ˚C
• Humidity: 95% – 100% RH

Mechanical Specifications

• Dimensions: L50 x W39 x H17 mm
• Cable: RG174
• Connector: SMA Male
• Mounting Method: Magnetic
