Oscar 185G/4G, Wi-Fi 6 and LPWAN Directional Wall/Pole Mount Antenna

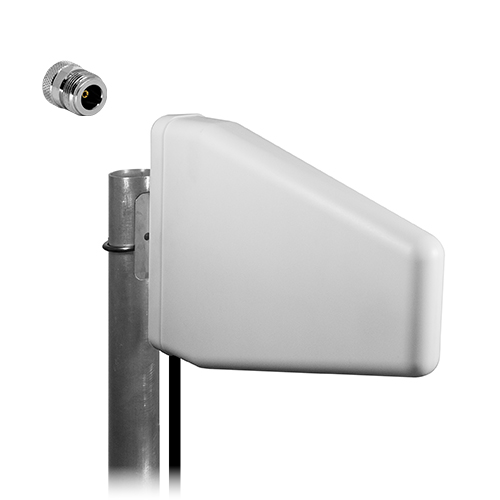

The Oscar 18 is a plastic enclosed Yagi-directional wall / bracket mount antenna and a great solution covering many popular frequencies in use today.

Its radome is UV and water resistant making it a great outdoor antenna.Its Yagi design provides superior performance for cellular applications in rural areas where signal reception is particularly low.

The radiating element from this Yagi antenna performs in a directional manner, producing a peak gain of 8 dBi to maximise signal transmission and reception.

It is supplied with a bracket for wall or pole mounting. Typical applications include Train-to Ground Rail applications, Precision Agriculture, Smart Grid Implementation and signal strength enhancement for real time tracking of public transport systems.

• Yagi (directional) antenna
• 8 dBi gain
• Pole/wall mounted


2G
GSM
3G
UMTS
4G
LTE
5G
New Radio
BLE
Bluetooth
HNT
Helium
IEEE
802.15.4
ISM
2450
ISM
5800
ISM
868
ISM
915
LTE
Cat M1
LTE
NB1
LoRa
Wireless
O
Wall/Pole
SF
Sigfox
W
Weightless
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WIFI
2.4G & 5G
WLAN
2400
WLAN
5800
ZB
Zigbee
z
wave


RoHS
Compliant

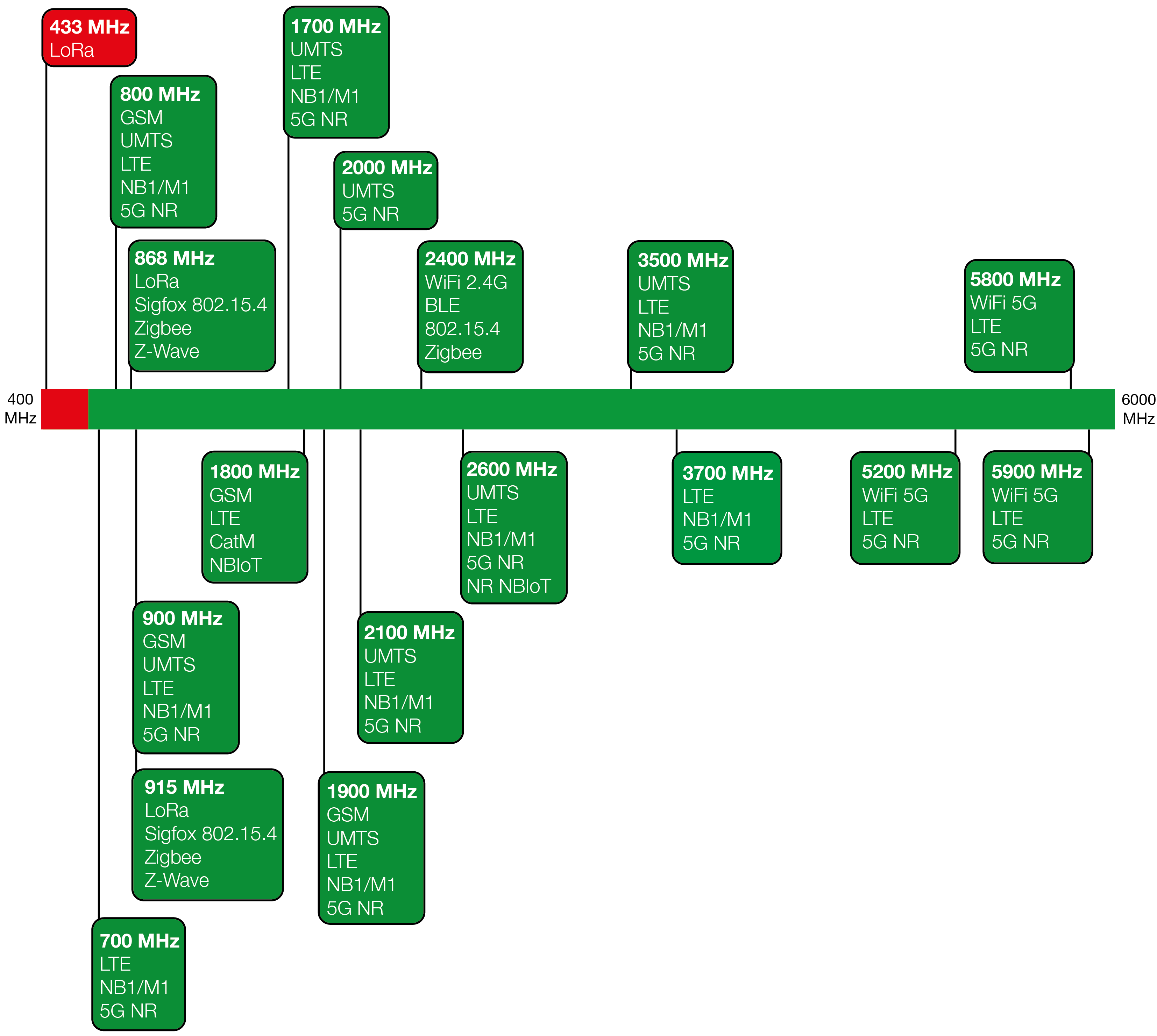

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheets

Oscar 18 Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: OSCAR18/x/NF/S/S/22
Description: 5G/4G, Wi-Fi 6 and LPWAN Directional Wall/Pole Mount Antenna N-TYPE Female Connector

Request For Quote

Cable Assemblies to suit different devices and applications can be found in the ‘RF Cables’ section
