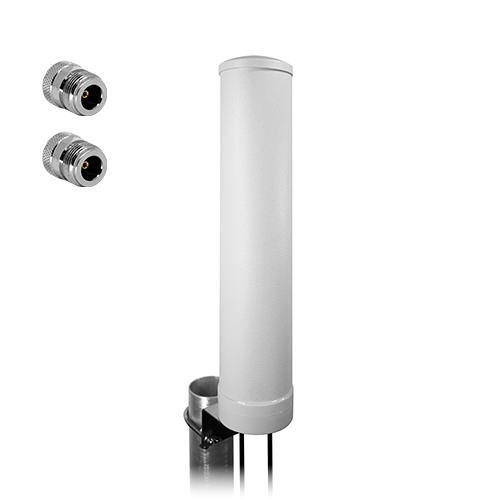

Oscar 4204G/5G MIMO Omni-directional Fixed Wireless Access Antenna

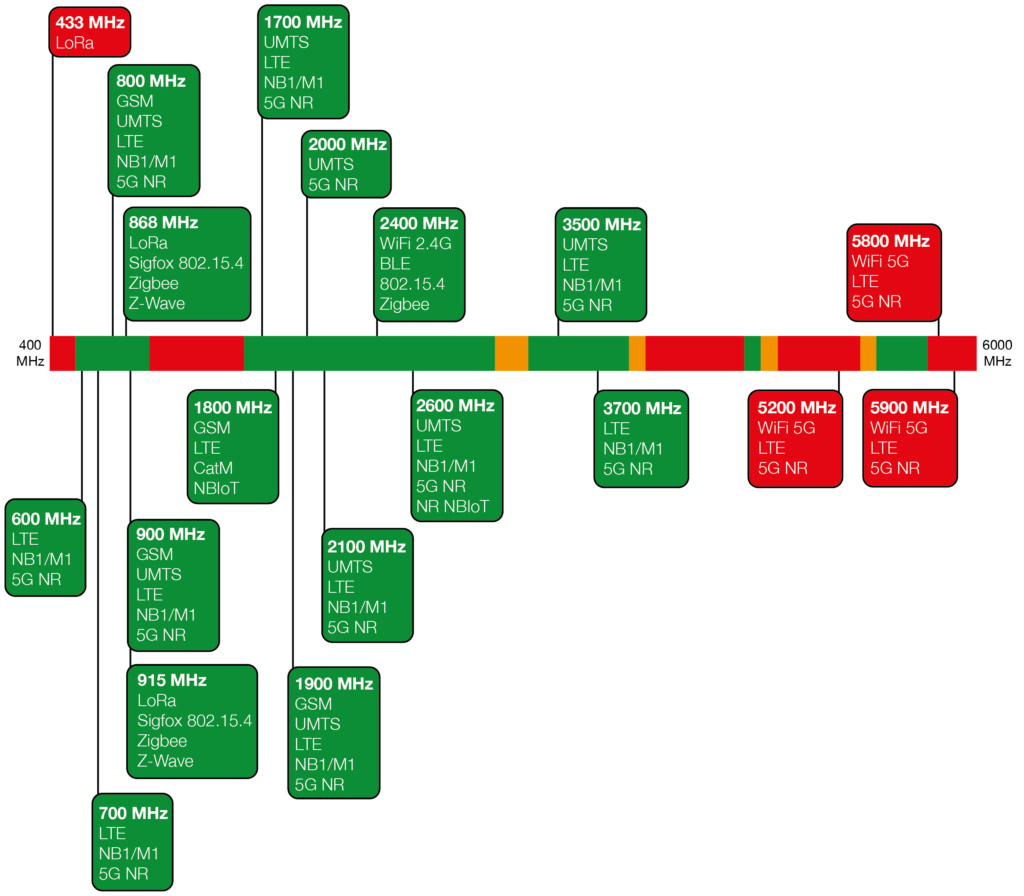

The Oscar 420 is a versatile outdoor 4G/5G antenna, covering key frequency bands from 600 MHz to 1 GHz and 1.6 GHz to 3.9 GHz, making it ideal for reliable mobile connectivity. With MIMO compatibility, this antenna is perfect for enhancing performance in 5G and 4G LTE networks, improving data throughput and signal reliability.
This antenna is especially suited for Fixed Wireless Access applications, delivering high-speed broadband over long distances. Additionally, the Oscar 420 supports Citizens Broadband Radio Service (CBRS) and C-Band frequencies, making it a great choice for private LTE/5G networks and mid-band 5G deployments.

Built for durability, its UV and water-resistant radome ensures dependable performance in all weather conditions. Fitted with 0.4m RG58 cables for easy connection to extension cables, it comes equipped with an aluminium bracket for wall mounting and includes a mast clamp for flexible installation.

Key Features

• Supports global 4G LTE and 5G NR bands.
• MIMO-compatible for enhanced 5G performance.
• Covers CBRS and C-Band frequencies.
• UV and water-resistant for outdoor use.
• High-gain for improved long-range connectivity.
• Omnidirectional monopole
• Adjustable mount allows positioning for best signal
• Ground Plane independent
• Public wireless systems
• Covers cellular/PCS (US and worldwide)

Electrical Specifications

• Impedance: 50 Ohms
• Polarisation: Vertical
• Max input power: 100 W
• Ground plane independent: Yes

Environmental Specifications

• Operating temperature range: -30 °C – +70 °C
• Storage temperature range: -30 °C – +70 °C

Mechanical Specifications

• Dimensions: L360 x 74mm Ø
• Weight: 650 g
• Connector: N Female x2
• Mounting method: Pole U-bolt
• Housing materials: ABS
