Oscar 44450MHz 5 Element Yagi Antenna

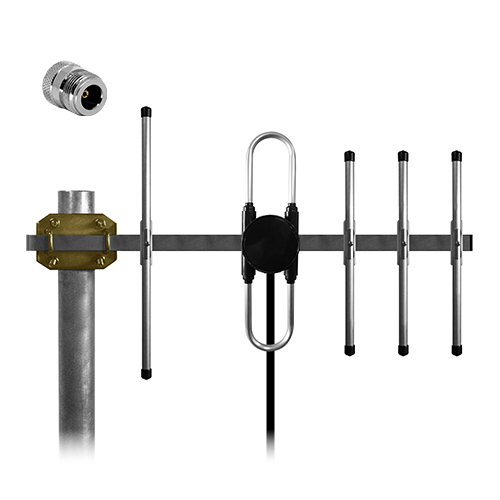

The Oscar 44 is an aluminium 5 element yagi type antenna with a peak gain of 9dBi. Ideal for remote sites like pump houses and water treatment facilities. The Oscar 44 is fitted with an N-Type female connector on a short length of cable (300mm). A universal clamp is supplied for use on standard antenna poles.

Key Features

• 450MHz ISM
• 5 element
• 9 dBi gain
• Selection of cable assemblies available – see website
• Excellent performance for low cost

Electrical Specifications

• Impedance: 50 Ohm
• Peak Gain: 9dBi
• VSWR: <1.5
• Max Input Power: 100W
• Operating frequencies: 400-480MHz
• Polarization: Vertical or Horizontal
• Horizontal Beamwidth: H Plane 54°
• Vertical Beamwidth: E Plane 48°
• Front to Back Ratio: <14dB

Mechanical Specifications

• Dimensions: L570 x W180 x H36mm
• Weight: 600g
• Rated Wind Velocity: 60m/s
• Connector: N-Type Female
• Pole Mount Bracket Diameter: 40-50mm
• Operating Temperature -20 to +60°C
