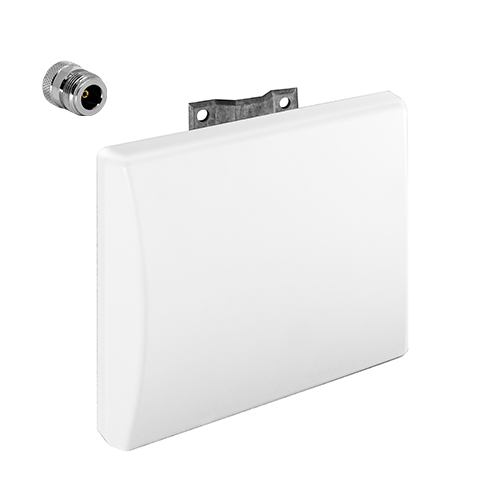

The Oscar 63 is an Ultra-Wideband High-Gain Outdoor Panel Antenna designed for 4G, 5G, Wi-Fi 6E, and upcoming Wi-Fi 7 technologies. Its high gain and wide frequency support ensure excellent performance for cellular communication, IoT devices, and high-speed Wi-Fi connectivity. Built for outdoor use, it combines compact design, robust construction, and ease of installation.
Typical applications include Industrial Automation, Smart City Infrastructure and Advanced Healthcare IoT systems.
- Supports Wi-Fi 6e and Wi-Fi 7: 2.4G, 5G and 6G bands
- Supports 5G NR / 4G LTE / 3G UMTS Bands
- Supports UWB frequencies between 2.6 – 8 GHz (UWB Bands 1-8)
- Supports LTE Cat M, LTE Cat NB and NR Cat NB Bands
- Supports Bluetooth / Zigbee / IEEE 802.15.4 / ISM 2.4 GHz / ISM 5.8 GHz
- Adjustable mount allows positioning for best signal
- Ground Plane independent
- For associated low loss cables for this antenna, please see ‘ordering information’ tab
3G
UMTS
4G
LTE
5G
New Radio
BLE
Bluetooth
IEEE
802.15.4
ISM
2450
ISM
5800
LTE
Cat M1
LTE
NB1
O
Wall/Pole
UWB
wideband
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WIFI 6
extended
WIFI 7
802.11be
WIFI
2.4G & 5G
WLAN
2400
WLAN
5800
ZB
Zigbee
RoHS
Compliant

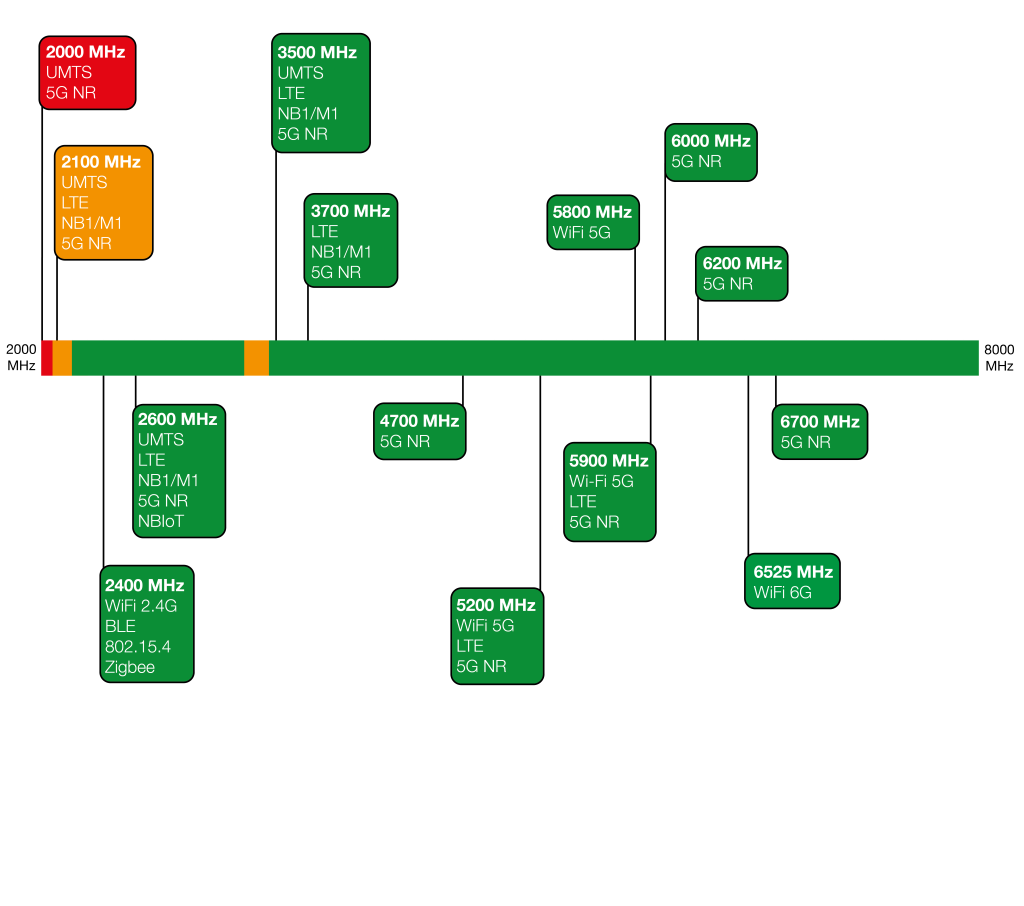

Spectral Frequency Diagram
The Spectral View Diagram visually describes the performance of the antenna from 2000 MHz to 8000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.
Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
Datasheets
Additional Antenna Resources
Ordering Information
Siretta Part Number: OSCAR63/X/NTYPEF/29
Description: Ultra-Wideband High-Gain Outdoor Panel Antenna for 4G LTE, 5G NR, Wi-Fi 6E and Wi-Fi 7 with NTYPE-F Connector
Associated Low Loss Cable Assemblies
Siretta Part Number: ASMR600A058L13
Description: N-TYPE(M) TO SMA(M) 6M LOW LOSS (SLL200) CABLE ASSEMBLY
Siretta Part Number: ASMR1000A058L13
Description: N-TYPE(M) TO SMA(M) 10M LOW LOSS (SLL200) CABLE ASSEMBLY
Siretta Part Number: ASMR1500A058L13
Description: N-TYPE(M) TO SMA(M) 15M LOW LOSS (SLL200) CABLE ASSEMBLY
Siretta Part Number: ASMR2000A058L13
Description: N-TYPE(M) TO SMA(M) 20M LOW LOSS (SLL200) CABLE ASSEMBLY
