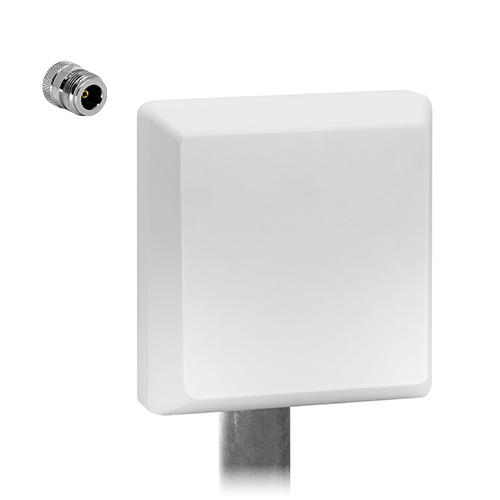

Oscar 67High Gain 9 dBi Directional ISM Outdoor Panel Antenna for 868/915 MHz

The OSCAR 67 is a highly efficient wide beam directional antenna designed for use in the 868 and 915 MHz frequency bands.

With a peak gain of 9 dBi, a VSWR of 1.35 and the ability to handle up to 100 watts of power, this antenna is perfect for your ISM, LoRa, Sigfox, Zigbee, Helium and Z-Wave applications.

The antenna’s radome is made of Engineering grade ASA plastic and can be set up with vertical or horizontal polarization.

Some common applications include Remote Sensor Telemetry, Smart Manufacturing and Medical Device Communication.

The OSCAR 67 comes with a wall mount and a pole mount, both are made of steel with an anti-rust treatment and can be adjusted to optimise signal strength.

Key Features

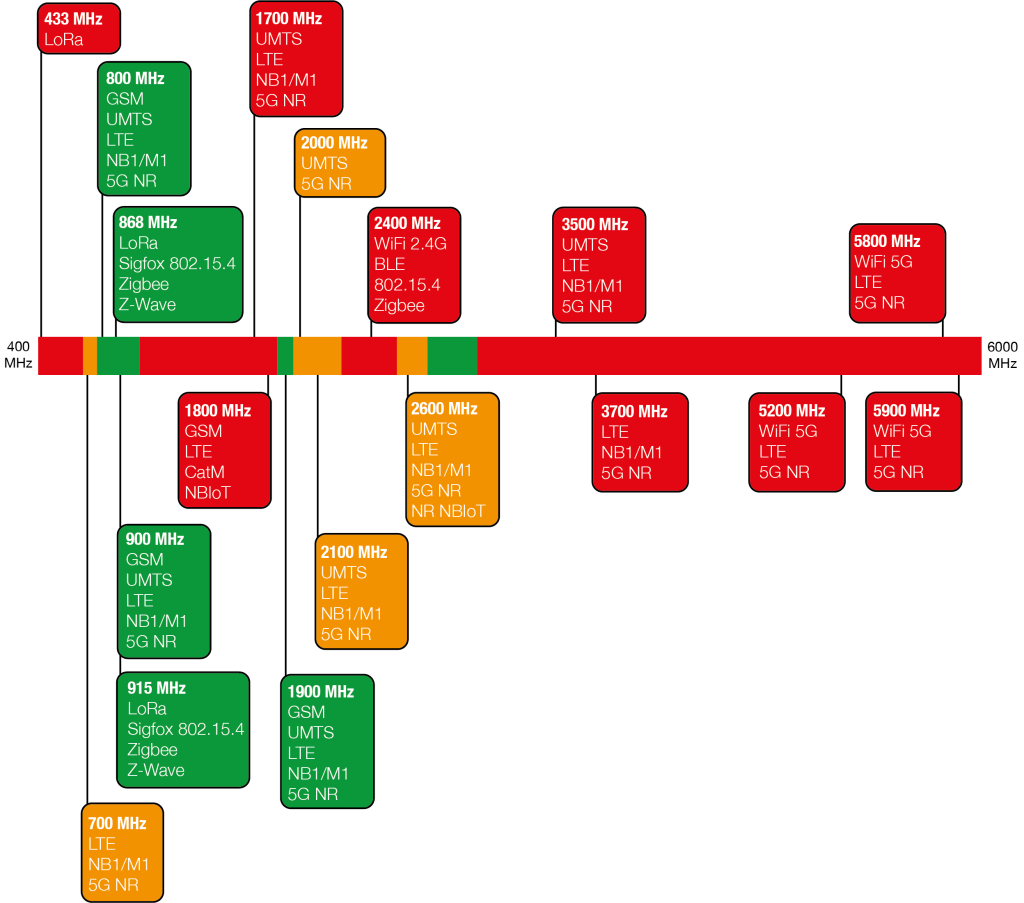

• 700 – 960 MHz support
• Supports IEEE 802.15.4, LoRa, Sigfox, Zigbee and Z-Wave and Helium bands
• Wide beam-width directional coverage
• Engineering grade ASA plastic radome
• 9 dBi gain
• Pole mount and wall mount included
• Meets all EU compliance criteria for electronic goods

Electrical Specifications

• Impedance: 50 Ohm
• Polarization: Vertical/Linear
• Max Input Power: 100 W
• Ground plane independent: Yes

Environmental Specifications

• Operating Temperature range: -45 to +75 °C
• Storage Temperature range:-50 to +75 °C

Mechanical Specifications

• Dimensions: 208 x 208 x 45 mm
• Weight: 1.2 Kg
• Connector: N Female, Long Neck
• Mounting method: Pole mount or Wall mount
• Housing materials: ASA plastic
