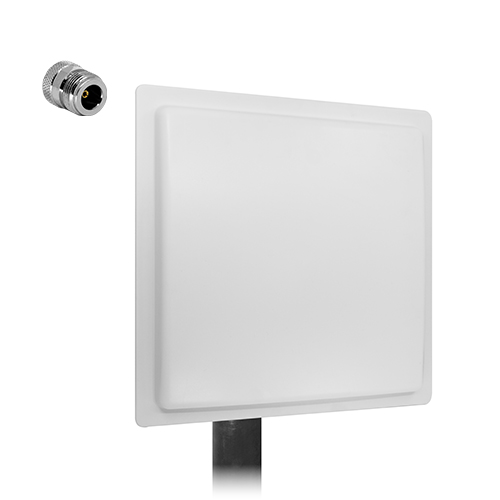

Oscar 68High Gain 13 dBi ISM Outdoor Panel Antenna for 868 / 915 / 2450 MHz

The OSCAR 68 is a highly efficient wide beam directional antenna designed for use in the 868, 915 and 2450 MHz frequency bands.

With a peak gain of 13 dBi, a VSWR of 1.5 and the ability to handle up to 100 watts of power, this antenna is perfect for your ISM, LoRa, Sigfox, Zigbee, Helium and Z-Wave applications.

The antenna’s radome is made of Engineering grade ASA plastic and can be set up with vertical or horizontal polarization.

Some common applications include Remote Sensor Telemetry, Smart Manufacturing and Medical Device Communication.

The OSCAR 68 comes with a pole mounting bracket made of steel with an anti-rust treatment and can be adjusted to optimise signal strength.

Key Features

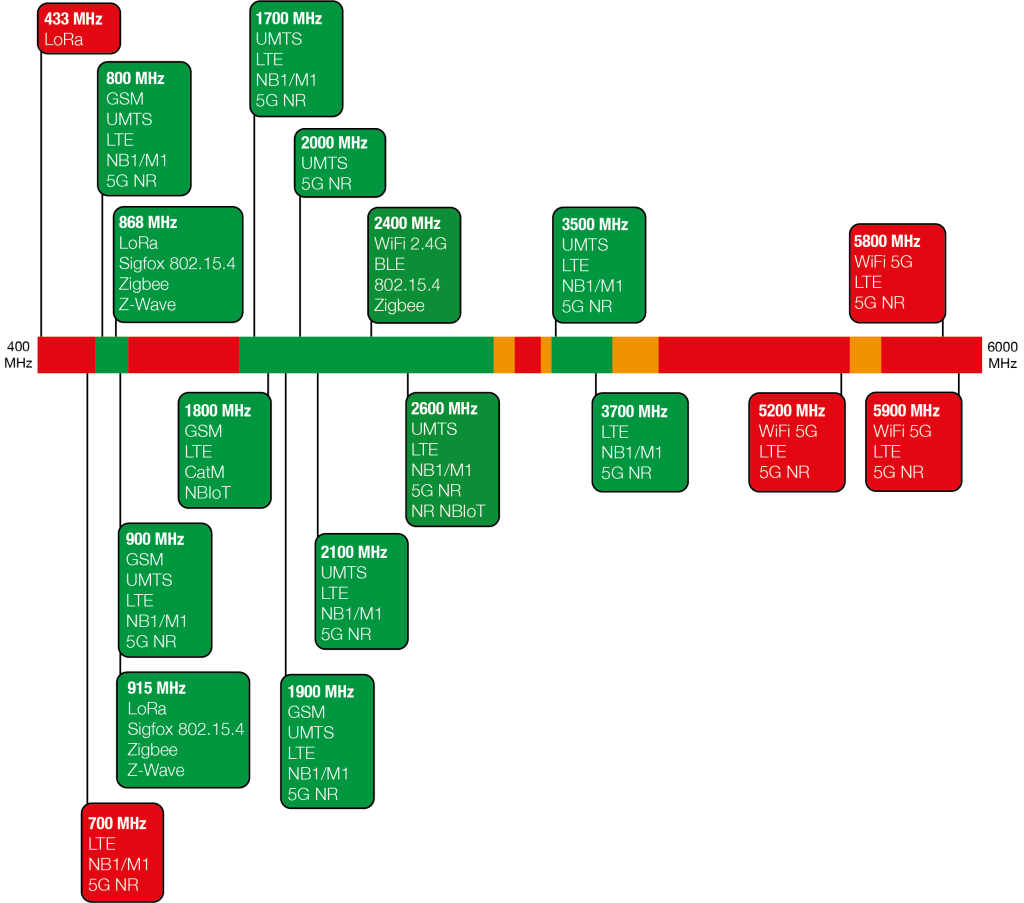

• Supports ISM 868, 915 and 2450 Bands
• Supports IEEE 802.15.4, LoRa, Sigfox, Zigbee and Z-Wave and Helium bands
• Supports 2.4GHz applications: ISM 2.4 GHz, Wi-Fi 2.4G, Bluetooth
• 12.8 dBi high gain for long range coverage or transmission
• Engineering grade ASA/ABS plastic radome
• Pole mount kit included
• Ground plane independent

Electrical Specifications

• Impedance: 50 Ohm
• Polarization: Vertical / Horizontal
• Max Input Power: 100 W
• Ground plane independent: Yes

Environmental Specifications

• Operating Temperature range: -45 to +75 °C
• Storage Temperature range:-50 to +75 °C

Mechanical Specifications

• Dimensions: 445 x 445 x 45 mm
• Weight: 3.2 Kg
• Connector: N Female, Long Neck
• Mounting method: Pole mount
• Housing materials: ASA plastic
