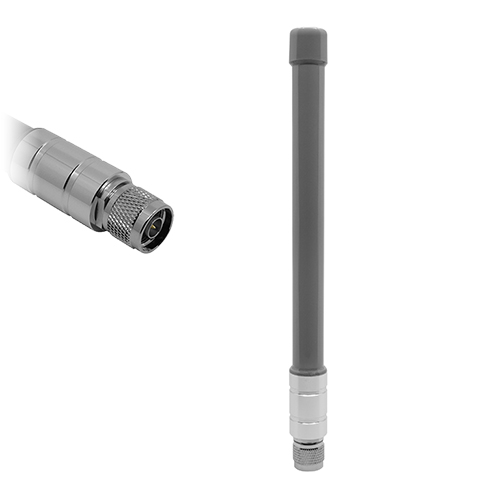

Oscar 70

The Oscar 70 is a high-performance, IP68-rated outdoor omnidirectional antenna engineered for wideband operation from 617 – 960 MHz to 1500 – 6000 MHz. It supports multiple wireless technologies, including 5G NR, 4G LTE, LTE-M, NB-IoT, 3G UMTS, dual-band Wi-Fi (2.4 GHz & 5 GHz), and UWB, making it ideal for fixed site and industrial connectivity applications.

Ground-plane independent and built with a rugged fiberglass radome, the Oscar 70 ensures consistent performance in demanding environments, with particularly high efficiency in key LTE and 5G bands.

The antenna is terminated with an N-Type Male connector; alternative connector options are available for high-volume orders.

Key Features

Wideband operation from 617 MHz to 6000 MHz
Supports 5G NR, 4G LTE, LTE-M, NB-IoT, and dual-band Wi-Fi (2.4 GHz & 5 GHz)
Omni-directional radiation pattern for 360° coverage
Ground-plane independent for flexible installation
Rugged IP68-rated fiberglass enclosure for outdoor environments
Direct terminal mounting via N-Type Male connector
Compatible with UWB and ISM band applications
Designed for long-term operation in harsh weather conditions
Alternative connector options available for high-volume orders

Typical Applications

Industrial routers and cellular gateways
Outdoor wireless telemetry systems
Smart city infrastructure, lighting, and waste management
Building and perimeter security for LTE/5G-connected cameras

Electrical Specifications

Frequency range: 617-960 / 1500-6000 MHz
Impedance: 50 Ω
Polarisation: Linear
Average gain: 2.8 dBi
Peak gain: 5.11 dBi
Average spherically integrated total gain:
- 700-900 MHz: -2.78 dBi
- 1500-6000 MHz: -1.81 dBi
Average efficiency: ~63%
VSWR: ≤ 1.5
Input power: 25 W
Directionality: Omni-directional
Ground plane independent: Yes

Environmental Specifications

IP rating: IP68
Operating temperature range: -40°C to +75°C
Storage temperature range: -40°C to +80°C

Mechanical Specifications

Colour options: Grey
Connector options: N-Type Female
Mounting method: Terminal Mounted
Dimensions: L268 mm x Ø20 mm
Weight: 120 g
Radome: ABS

Product Features

GSM

UMTS

LTE

BLE

Bluetooth

ISM

868

ISM

915

ISM

2450

ISM

5800

LTE

CAT-M

LTE

NB-IoT

LoRa

Wireless

Wall/Pole

Omni

directional

Sigfox

Smart

Farming-Filter

Weightless

WIFI

2.4G

WIFI

2.4G & 5G

WIFI

WIFI 4

802.11n

WIFI 5

802.11ac

WIFI 6

802.11ax

wave

Cellular Band Support

B10

B11

B12

B13

B14

B17

B18

B19

B20

B21

B22

B24

B25

B26

B27

B28

B28A

B29

B30

B32

B33

B34

B35

B36

B37

B38

B39

B40

B41

B42

B43

B44

B45

B46

B47

B48

B49

B50

B51

B52

B53

B54

B65

B66

B67

B68

B69

B70

B74

B75

B76

B85

B103

5G NR Band Support

n12

n13

n14

n18

n20

n24

n25

n26

n28

n29

n30

n34

n38

n39

n40

n41

n46

n47

n48

n50

n51

n53

n54

n65

n66

n67

n70

n74

n75

n76

n77

n78

n79

n80

n81

n82

n83

n84

n85

n86

n89

n90

n91

n92

n93

n94

n95

n97

n98

n99

n101

Product Compliance

RoHS

Compliant

REACH

Compliant

TSCA

Assessed

CMRT

Aligned

Anti

Slavery

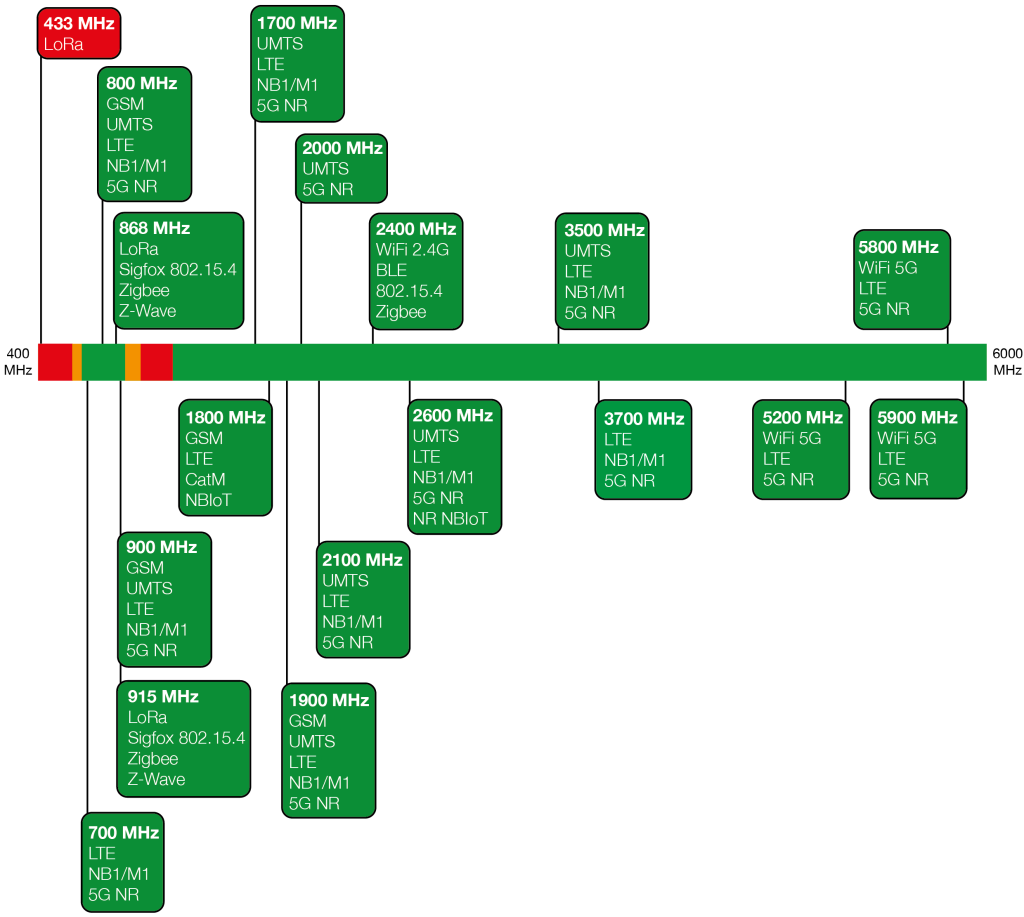

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
