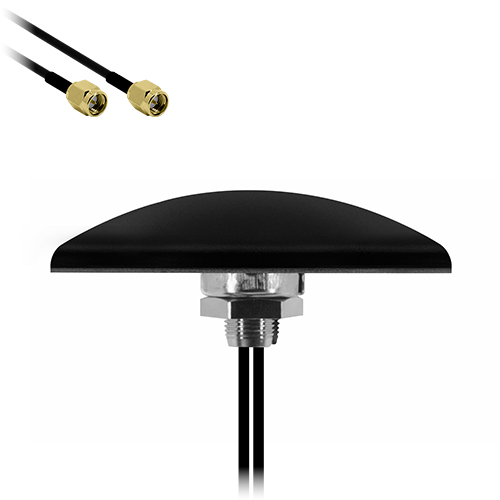

Tango 15Low Profile, MIMO GSM(2G)/3G/GPS Combined Antenna

The Tango 15 is a low profile, robust and vandal resistant antenna suitable for outdoor equipment like vending machines, traffic light systems, automotive and many other types of GPS applications. It is designed for semi-covert applications where the antenna is best out of sight. Operating on 2G(GSM)/3G and GPS.

This antenna combines an active GPS antenna with an LNA (Low Noise Amplifier) so it can be used with GPS applications as well as cellular. The antenna can be supplied with alternative cable lengths or connector types for volume orders.

Key Features

• Combined GSM & GPS Functionality
• Quad Band GSM/GPRS & 3G
• Screw/Through-Hole Mount Antenna
• GSM Gain 2.5dBi; GPS LNA Gain 25dB
• IP65 Rated
• Compatible worldwide with any cellular GSM application
• Perfect for covert applications
• Vandal resistant Dual mounting – adhesive and screw mount

Note:

• Blue heat shrink for GPS cable
• Black heat shrink for GSM/GPRS/UMTS cable

Electrical Specifications

• Operating temperature: -40 – +85°C
• Impedance: 50 Ohm
• Average GSM Gain: 2.5dBi
• GPS (LNA) Gain: 2d dB
• VSWR: ≤2.0:1
• Operating frequency:
  • GSM/GPRS 890-960 /1710-1880MHz
  • 3G 2100MHz
  • GPS 1575.42MHz
• Voltage and Supply Current: 3-5 DC , 25 mA Typical
• Polarization: GSM – Vertical / GPS – RHCP

Mechanical Specifications

• Dimensions: ø94 x18mm
• Cable: RG174 1m/3m
