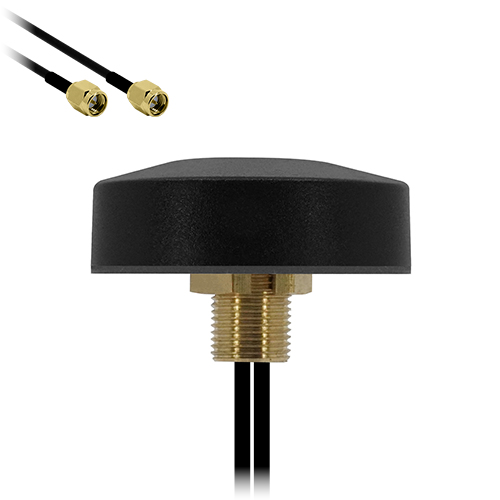

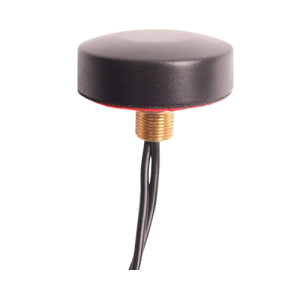

Tango 19MIMO 2G (GPRS)/3G/4G & GPS Puck Antenna

The Tango 19 is a combination antenna, with two antennas built into a single package.

One is an active GPS antenna with a Low Noise Amplifier (LNA) to boost performance and provide a strong satellite signal strength. The stronger signal allows satellites to be acquired more quickly speeding up application use. The second antenna is a passive 1-2dBi gain Quad Band 2G antenna, allowing for worldwide use with some coverage in 3G and 4G bands.

Supplied as standard with 3 or 5m cable and SMA Male Connectors. Alternative cable lengths or connector types may be specified for volume orders.

• MIMO Quad band GSM and GPS active antenna
• Built in LNA with 28dB gain
• Compact puck design

Best for signal coverage in the following bands:
• 2G Band 9 (E-GSM-900)
• 3G Band 8 (E-GSM-900)
• 3G Band 1 (IMT-2100)
• 4G Band 20 (800)


2G
GSM
3G
UMTS
4G
LTE
GPS
Position
MIMO
Antenna
MIMO
Multi Tech
TANGO
thread


RoHS
Compliant

Datasheets

Tango 19 Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: TANGO19/3M/SMAM/SMAM/S/S/20
Description: Combined 2G (GPRS)/3G/4G & GPS Puck Antenna 3m Cable

Request For Quote

Siretta Part Number: TANGO19/5M/SMAM/SMAM/S/S/20
Description: Combined 2G (GPRS)/3G/4G & GPS Puck Antenna 5m Cable

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders.
