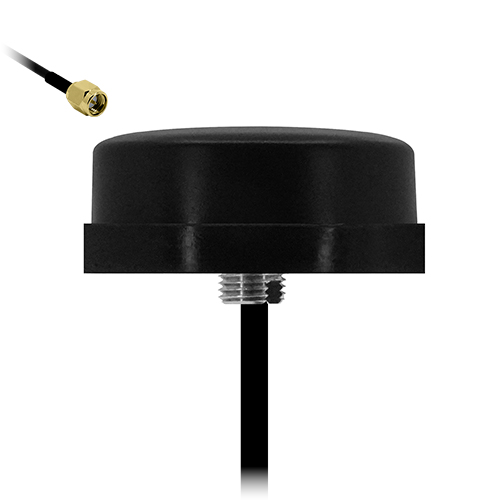

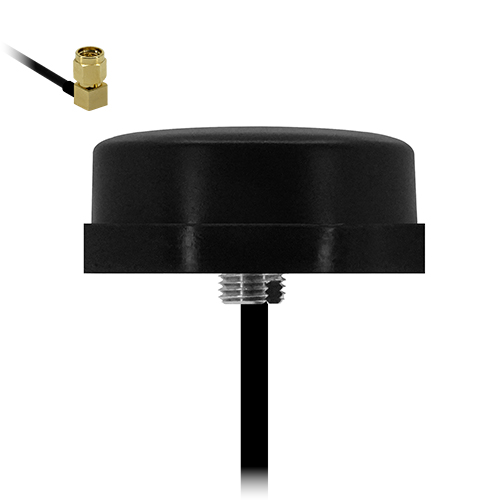

Tango 20AIP67 GPS & GLONASS Puck Antenna

The Tango 20A is a GPS & GLONASS dual system antenna. It comes with a rubber seal gasket for IP67 rated weatherproof protection and is well suited to outdoor environments.

The antenna is supported by the LNA which has a 28dB gain to uplift the dielectric antenna signal. Common applications are commercial vehicle roofs, and exterior vending machines where the screw mount allows the antenna to be fixed in place.

Supplied as standard with 3m of cabe and SMA Male connector. Alternative cable lengths or connector types can be specified for volume orders.

Key Features

• GPS & GLONASS
• Rubber seal gasket
• 28dB LNA Gain
• Vandal Resistant
• Compact Size

Electrical Specifications – Dielectric Antenna

• Frequency: 1575-1615 MHz
• Impedance: 50 Ohm
• Polarization: RHCP
• Gain: 2dBi (Zenith)
• VSWR: <1.5
• Axial Ratio: 3dB (Max)

Electrical Specifications – GPS Antenna

• Gain: 28dB
• Noise Figure: <1.5
• Filter Insertion Loss: <3 dB
• Ex-band Attenuation:
  •  35 dB@CF + 50 MHz
  • 50 dB@CF -100 MHz
• VSWR: <2.0
• Supply Voltage: 2.2 – 5V DC
• Current Consumption: 16 – 32mA

Mechanical Specifications

• Dimensions: Ø 46.6 x H14.5mm
• GPS Connector: SMA Male
• Material: ABS
• Cable: RG174
• Mounting Method: Adhesive

Environmental Specifications

• Operating Temperature: -40 to +85°C
• Relative Humidity: Up to 95%
