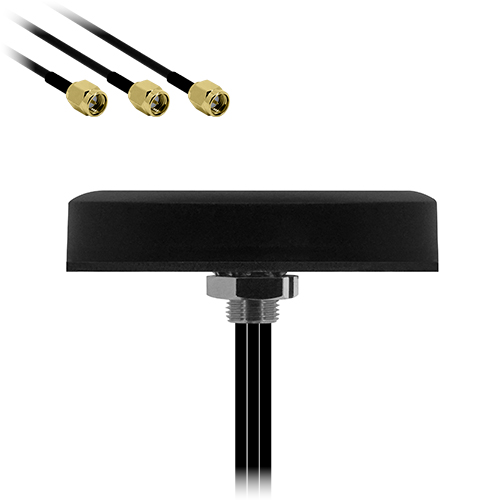

Tango 22Combined, MIMO 2G (GPRS)/3G/4G/WiFi & GPS Puck Antenna

The Tango 22 combines 3 separate antennas into one compact and low profile package, capable of Quad band GPRS 2G, 3G, 4G, WiFi & GPS. Designed for applications that can benefit from an ‘all-in-one’ solution rather than having to install three separate antennas.

Common applications are automotive tracking, vending machines and utility metering. Supplied as standard with SMA connectors but alternative cable lengths or connector types can be specified for volume orders.

• MIMO 2G, 3G, GPS & WiFi combined
• Low profile design
• 2dBi peak gain

Best for cellular signal coverage in the following bands:
• 2G Band 3 (DCS-1800)
• 2G Band 9 (E-GSM-900)
• 3G Band 1 (IMT-2100)
• 3G Band 8 (E-GSM-900)
• 4G Band 20 (800)


2G
GSM
3G
UMTS
BLE
Bluetooth
GPS
Position
ISM
2450
MIMO
Antenna
MIMO
Multi Tech
TANGO
thread
WLAN
2400
ZB
Zigbee


RoHS
Compliant

Datasheets

Tango 22 Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: TANGO22/2.5M/SMAM/SMAM/RPSMAM/26
Description: Combined 2G GPRS/3G/4G (SMA) & WiFi (SMA) & GPS(RP SMA) Puck Antenna

Request For Quote

Siretta Part Number: TANGO22/3M/SMAM/SMAM/SMAM/26
Description: Combined 2G GPRS/3G/4G & WiFi & GPS Puck Antenna

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders.
