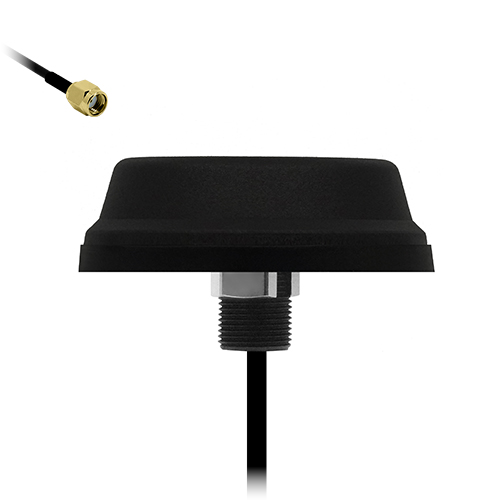

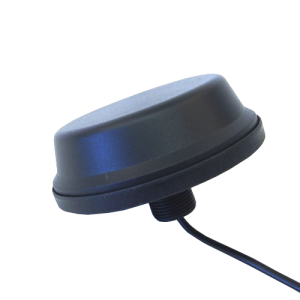

The Tango 23 is a compact, puck antenna, tuned to dual band 2.4 /5.8GHz – WiFi / WLAN, Bluetooth and Zigbee frequencies. With dual band compatibility it can be used with most modern day WiFi single and dual band modems such as NetGear and TP-link thereby benefiting from the less congested upper band.

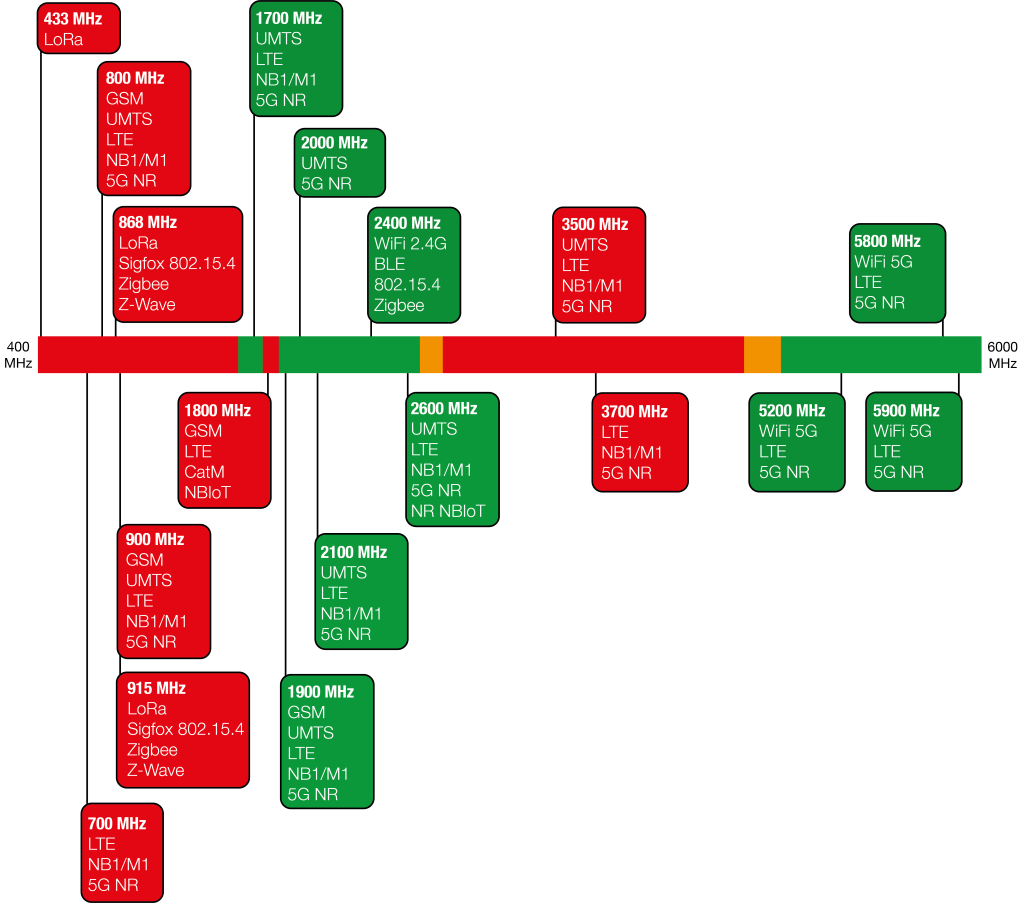

In addition to the WiFi bands some LTE bands for 4G, 5G, Cat M and NB IoT are also supported. Refer to the band coverage tables for performance details.

The Tango 23 is supplied as standard with low loss CLF100 cable and terminated with a reverse polarity SMA male connector.

Alternative cable lengths and connector types can be specified for small volume orders.

• Dual Band: 2.4GHz & 5.8GHz
• Support for some LTE bands, 4G/5G Cat M and NB IoT
• Made with a rubber seal gasket to resist water ingress – Tested to IP67
• Supplied with a low loss cable for enhanced performance

Tango 23


4G
LTE
5G
LTE
BLE
Bluetooth
IP
67
ISM
2450
T
Through
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WLAN
2400
WLAN
5800
ZB
Zigbee

Datasheet

Tango 23 Datasheet

IP Test Certificate

TANGO 11A/23/44 IP Test Certificate

Antenna 2D Radiation Plot Guide

Antenna 2D Radiation Plot Guide

Antenna Technical Parameter Guide

Siretta Antennas 101 eBook

Ordering Information

Siretta Part Number: TANGO23/0.5M/SMAM/S/RP/19
Description: DUAL BAND WIFI 2.4/5.8GHz / (LTE) THROUGH HOLE ANTENNA SMA MALE RP CONNECTOR 0.5m CABLE

Request For Quote

Siretta Part Number: TANGO23/1M/SMAM/S/RP/19
Description: DUAL BAND WIFI 2.4/5.8GHz / (LTE) THROUGH HOLE ANTENNA SMA MALE RP CONNECTOR 1m CABLE

Request For Quote

Siretta Part Number: TANGO23/2.5M/SMAM/S/RP/19
Description: DUAL BAND WIFI 2.4/5.8GHz / (LTE) THROUGH HOLE ANTENNA SMA MALE RP CONNECTOR 2.5m CABLE

Request For Quote

Alternative cable lengths and connector types can be specified for small volume orders
