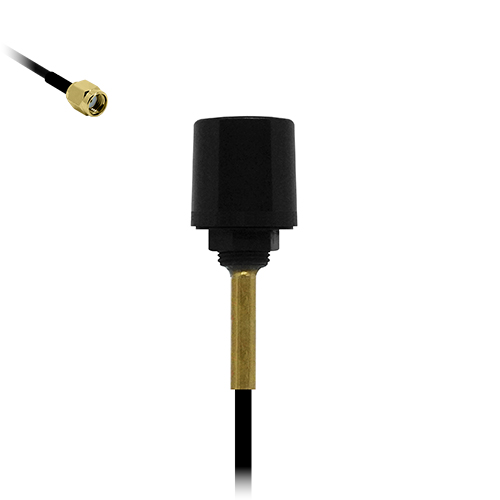

Tango 25Miniature 5G/4G and Dual Band Wi-Fi Through-Hole Mount Antenna

The Tango 25 is a miniature through-hole mount, Wi-Fi/WLAN/Bluetooth/Zigbee/4G LTE/5G NR antenna.

Measuring at an impressive 22 x 22 mm, this is one of the most compact screw mount Wi-Fi antennas.

The Tango 25 is tuned to operate in a wide range from 2.3 to 6.0 GHz, making this antenna perfect for Dual-band Wi-Fi, Bluetooth and Zigbee applications.

Achieving a gain of 5 dBi at 2.4 GHz, this antenna is also semi covert and great for use in public areas.

Supplied as standard with an SMA Male Reverse Polarity connector and 100 mm cable.

Alternative cable lengths and connector types can be specified for volume orders.

  • Supports 5G NR / 4G LTE
  • Supports Dual Band Wi-Fi 4/5/6
  • Supports Bluetooth / Zigbee / ISM 2450 / ISM 5800 / IEEE 802.15.4 Bands
  • Supports WLAN 2400 / WLAN 5800 Bands
  • Miniature Design
  • Through Hole / Screw Mounting
  • IP65 Rated


4G
LTE
5G
New Radio
AoA
Bluetooth
AoD
Bluetooth
BLE
Bluetooth
IEEE
802.15.4
IP
65
ISM
2450
ISM
5800
TANGO
thread
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WIFI
2.4G
WLAN
2400
WLAN
5800
ZB
Zigbee


RoHS
Compliant

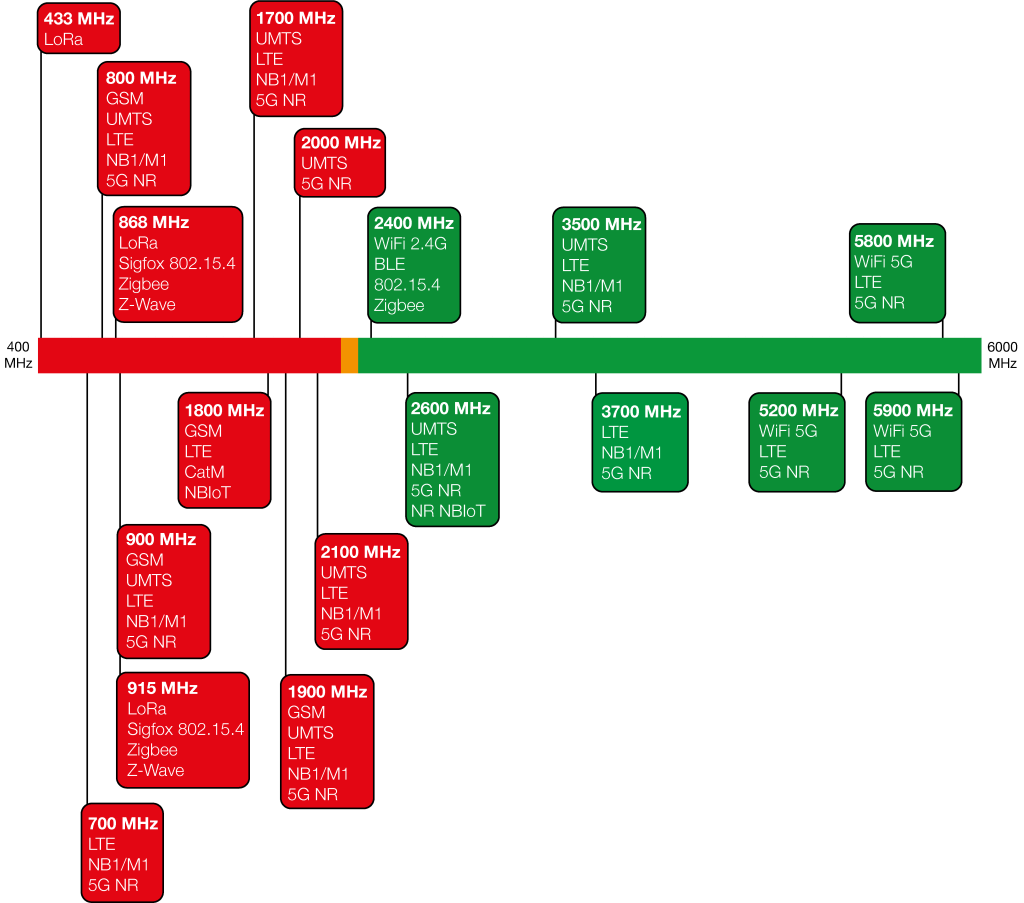

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheets

TANGO 25 IP Test Certificate
Tango 25 Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: TANGO25/0.1M/SMAM/S/RP/29
Description: Miniature 5G/4G/WiFi/Bluetooth/Zigbee Through-Hole Mount Antenna, 0.1 M Cable, SMA Reverse Polarity Connector

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders
