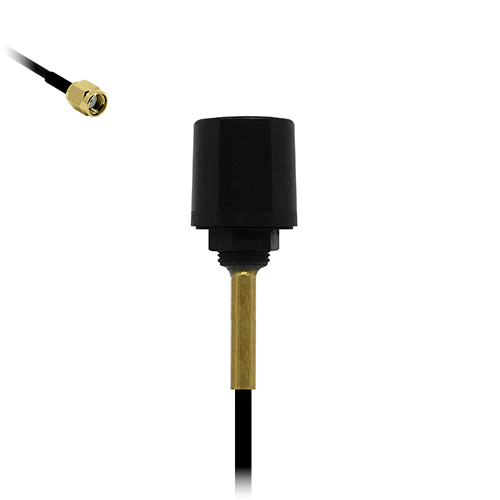

The Tango 25A is a miniature, through- hole mount, dual band Wi-Fi / WLAN antenna.
Measuring at an impressive 22 x 22mm, this is one of the most compact screw mount Wi-Fi antennas on the market.
Despite its small size, this antenna features a high gain of 9.34 dBi at the 2.4 GHz frequency.
The Tango 25A is tuned to operate within the 2.4 to 2.5 GHz and 5.1 to 5.9 GHz frequencies, making this antenna perfect for Wi-Fi, Bluetooth and Zigbee applications.
The antenna is supplied as standard, with 100mm of RG174 coaxial cable, terminated with a reverse polarity SMA male connector.
Custom cable lengths and alternative connector types can be specified for volume orders.

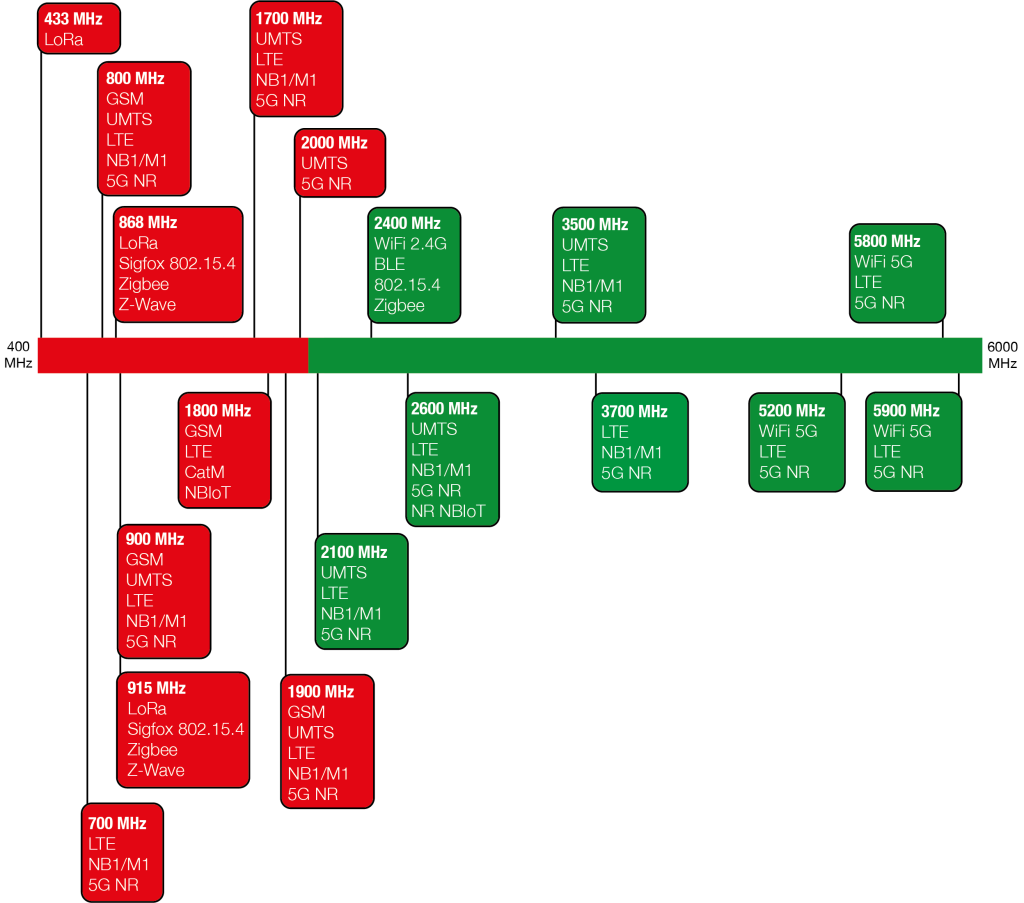

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.
Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
Siretta Part Number: TANGO25A/0.1M/SMAM/S/RP/29
Description: High Gain Miniature 5G/4G and Dual Band Wi-Fi Through-Hole Mount Antenna 0.1M Cable RP SMA Male
