Tango 26Bluetooth/Zigbee Miniature Through-Hole Mount Antenna

The Tango 26 is a miniature through-hole mount, Wi-Fi/WLAN/Bluetooth/Zigbee/ 4G LTE/5G NR antenna.

Despite a compact size, this antenna provides great Wi-Fi performance.

The Tango 26 is tuned to operate in a wide range from 2.4 to 2.5 GHz & 5.8 GHz frequencies, making this antenna perfect for Dual-band Wi-Fi, Bluetooth and Zigbee applications.

Supplied as standard with an SMA Male Reverse Polarity connector and 100 mm cable.

Alternative cable lengths and connector types can be specified for volume orders.

  • Supports 5G NR / 4G LTE
  • Supports Dual Band WiFi 4/5/6
  • Supports Bluetooth / Zigbee / ISM 2450 / ISM 5800 and IEEE 802.15.4
  • Supports WLAN 2400 / WLAN 5800 Bands
  • Miniature Design
  • Through Hole / Screw Mounting
  • IP65 Rated


BLE
Bluetooth
IEEE
802.15.4
IP
66
ISM
2450
ISM
5800
TANGO
thread
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WIFI
2.4G & 5G
WLAN
2400
WLAN
5800
ZB
Zigbee


RoHS
Compliant

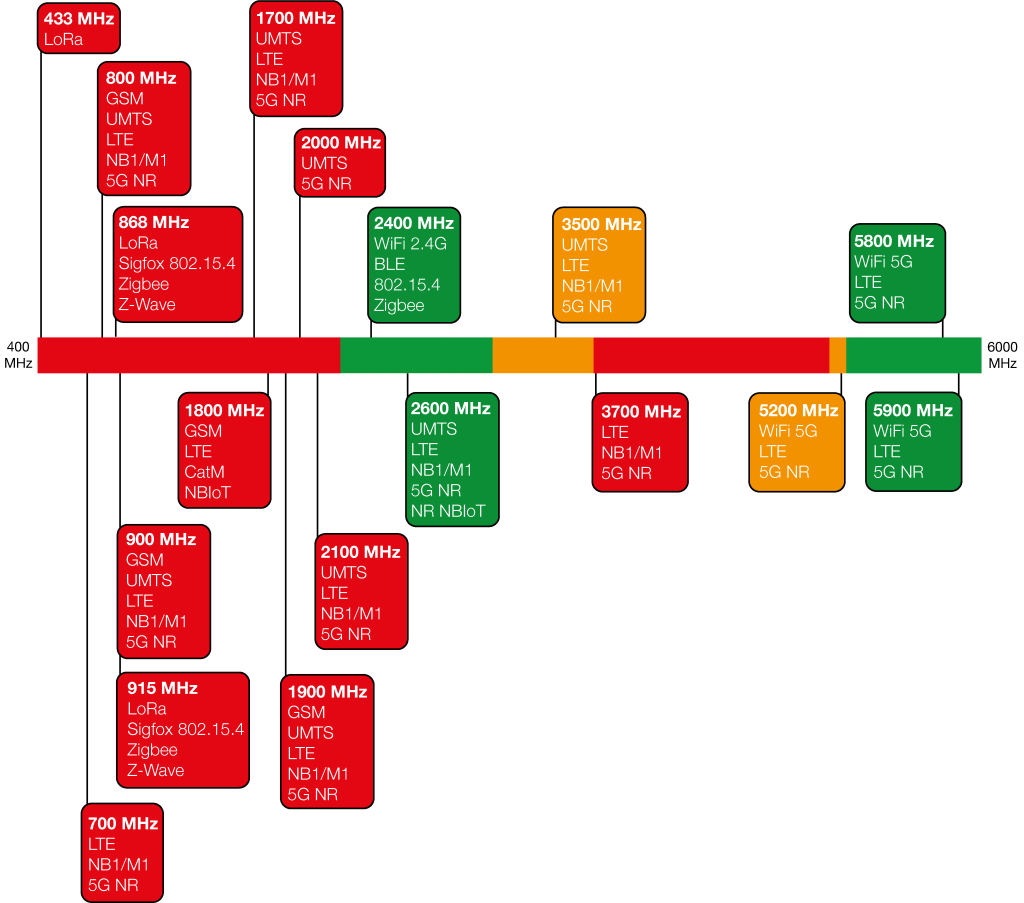

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Datasheets

TANGO 26 IP Test Certificate
Download Now!
Tango 26 Datasheet
Download Now!

Additional Antenna Resources

Antenna Fact Sheet
Download Now!
Understanding Antenna Theory
Download Now!
Antenna 2D Radiation Plot Guide
Download Now!
Visual Guide to Radiation Plots
Download Now!
IP Rating Guide
Download Now!

Ordering Information

Siretta Part Number: TANGO26/0.1M/SMAM/S/RP/29
Description: Miniature Bluetooth/Zigbee Miniature Through-Hole Mount Antenna 0.1M Cable Reverse Polarity SMA Male

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders.
