Tango 282.4 GHz Tiny Stubby Panel Mount Wi-Fi/Bluetooth/Zigbee Antenna

The Tango 28 is a very small panel mount antenna.

Ideal for small projects located within a good signal zone.

The antenna is compatible with Bluetooth, Wi-Fi (both 2.4 GHz & 5 GHz) and Zigbee enabled IoT devices.

Supplied as standard with 100mm of 1.13mm Ø cable and an I-PEX / uFL connector.

Alternative connectors and cable lengths may be specified for volume orders.

Key Features

  • Supports Dual Band Wi-Fi 2.4 GHz & 5 GHz spectrum
  • Supports some of 5G NR / 4G LTE bands
  • Supports ISM 2450 / ISM 5800 / WLAN 2400 / WLAN 5800 bands
  • Supports Bluetooth / Zigbee / IEEE 802.15.4
  • Panel mount, small stubby antenna
  • Tiny 12.3mm height from panel surface to antenna top
  • 5mm thread segment
  • Allows simple connection onto PCB

Electrical Specifications

  • Impedance: 50 Ohm
  • Max Input Power: 1W
  • Polarization: Omni Directional
  • Ground plane independent: No

Environmental Specifications

  • Operating Temperature range: -25 to +65 °C
  • Storage Temperature range: -25 to +65 °C

Mechanical Specifications

  • Dimensions: H18.3 x 8.5 mm diameter
  • Weight: 2.60 g
  • Cable: RG178
  • Connector: I-PEX / uFL
  • Mounting method: Panel mount
  • Housing materials: TPR
  • tango_28_ipex_500x500
  • tango_28_ipex_mhf4_500x500

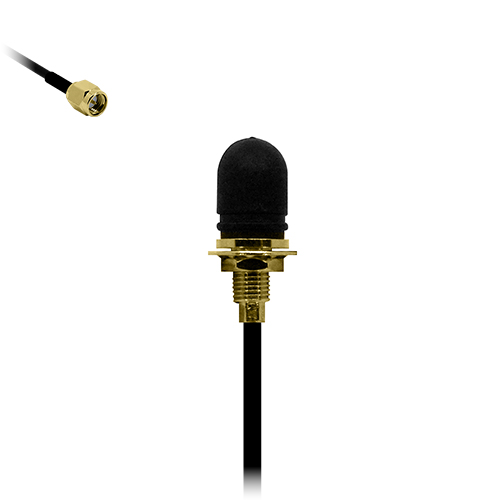

  • tango_28_smam_500x500

Product Features
BLE
Bluetooth
IEEE
802.15.4
ISM
2450
ISM
5800
Omni
directional
TANGO
thread
WIFI
2.4G & 5G
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WLAN
2400
WLAN
5800
ZB
Zigbee

Product Compliance
RoHS
Compliant
REACH
Compliant
TSCA
Assessed
CMRT
Aligned
Anti
Slavery

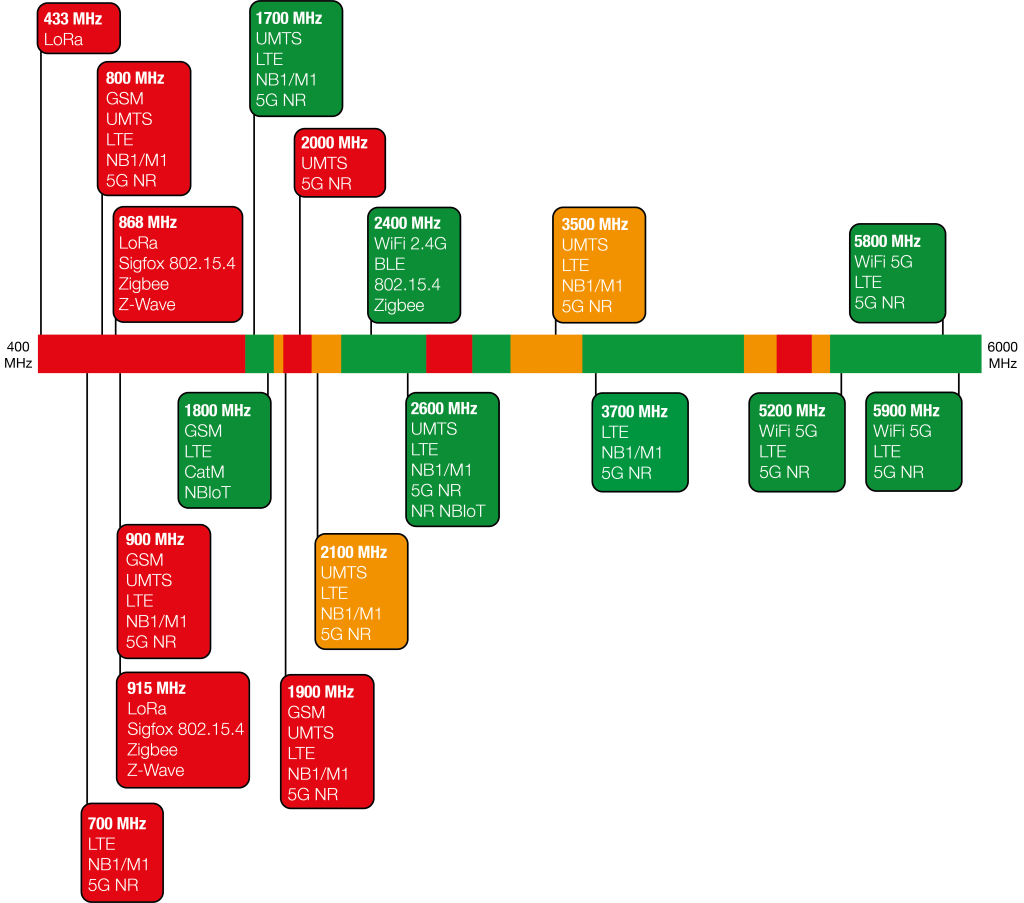

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.

Ordering Information

Siretta Part Number: TANGO28/0.1M/IPEX/S/S/35
Description: 2.4 GHz Tiny Stubby Panel Mount Wi-Fi/Bluetooth/Zigbee Antenna 0.1M Cable I-PEX Connector

Request For Quote

Siretta Part Number: TANGO28/0.15M/IPEX/S/S/35
Description: 2.4 GHz Tiny Stubby Panel Mount Wi-Fi/Bluetooth/Zigbee Antenna 0.15M Cable I-PEX Connector

Request For Quote

Siretta Part Number: TANGO28/0.1M/IPEXMHF4/S/S/35
Description: 2.4 GHz Tiny Stubby Panel Mount Wi-Fi/Bluetooth/Zigbee Antenna 0.1M Cable I-PEX MHF4 Connector

Request For Quote

Siretta Part Number: TANGO28/0.1M/SMAM/S/S/35
Description: 2.4 GHz Tiny Stubby Panel Mount Wi-Fi/Bluetooth/Zigbee Antenna 0.1M Cable SMA Male Connector

Request For Quote
