Tango 32G/GPRS & 3G Through Hole Antenna

The Tango 3 is tuned to tri band 2G/GPRS & 3G/UMTS frequencies. It is suited to industrial and automotive applications for panel mounting (up to 4mm thick) and is manufactured with an O ring seal to prevent moisture ingress once installed.

The brass foot has a ridged topside allowing secure fitting to the enclosure and a 6mm diameter screw thread for mounting the antenna.

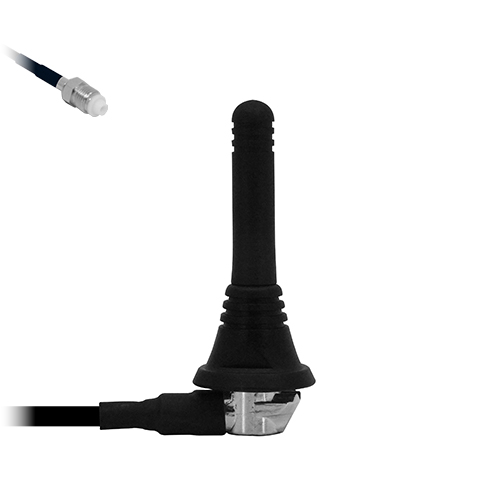

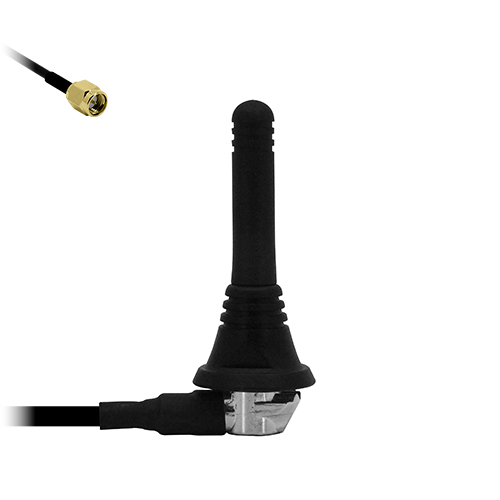

Supplied as standard with a 3m cable and either SMA Male or FME Female connectors. Alternative cable lengths or connector types may be specified for volume orders.

Key Features

• Compact size
• Tri-band 2G + 3G
• Wide frequency range
• Panel mounted
• Meets all EU compliance criteria for electronic goods

Electrical Specifications

• Operating temperature: -40 – +85°C
• Impedance: 50 Ohm
• Peak Gain: 2.5dBi
• VSWR: ≤2.0:1
• Max Power: 20 W
• Frequency Range: 869-960/1710-1990MHz
• Radiation: Omni
• Polarization: Vertical

Mechanical Specifications

• Dimensions: L76 x W29 x 10mm Ø
• Cable: RG58
• Weight: 20 g
• Connector: SMA Male
• Mounting Method: Through Hole
