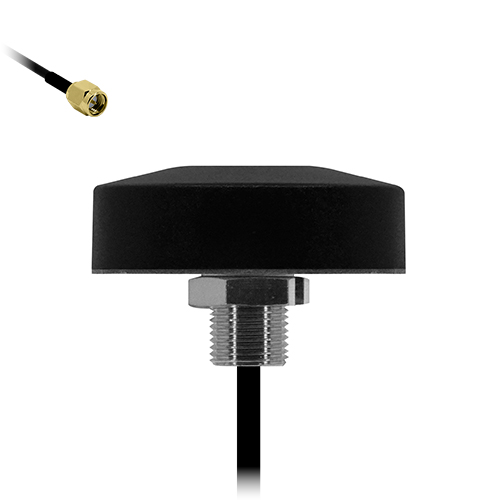

Tango 38B915MHz ISM band panel mounting puck Antenna

The Tango 38b is a compact puck shaped antenna tuned to the 915MHz ISM band, achieving a peak gain of 2dBi. The Tango 38b is suitable for unlicensed band based applications that need a high performance antenna mounted securely and remotely from the modem.

Supplied as standard with 1m of cable and an SMA Male connector. Alternative connectors and cable lengths may be specified for volume orders.

Key Features

• 915MHz ISM band frequency
• 2dBi Peak Gain
• Adhesive base for dual mounting purposes
• Suitable for exterior mounting
• Ideal for unlicensed band based applications

Electrical Specifications

• Impedance: 50 Ohm
• VSWR: ≤1.5:1
• Peak Gain: 2dBi
• Frequency Range: 915MHz
• Bandwidth: 10MHz
• Power Capacity: 50W
• Polarization: Vertical

Mechanical Specifications

• Operating Temperature:-30 – +75°C
• Storage Temperature:-30 – +75°C
• Dimensions: 46 Ø x 15mm
• Cable: RG174
• Connector: SMA Male
• Mounting Method: 12mm screw
• Housing: ABS
