Tango 39433MHz ISM band panel mounting puck Antenna

The Tango 39 is a compact puck shaped antenna tuned to the 433MHz ISM band. Typical applications are garage remote control systems, property alarms, wireless sensor connections, TETRA Radio System Base Units and LoRa EU433 IoT device connections.

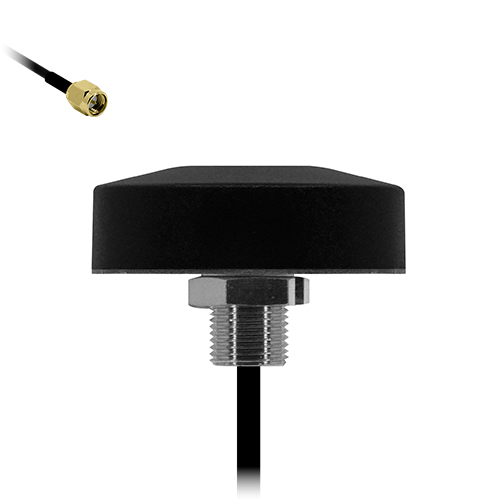

The antenna is supplied as standard with an SMA male connector on 1m of cable. Alternative connectors and cable lengths can be specified for volume orders.

Key Features

• 433MHz ISM band frequency
• Compact puck design
• 1dBi Peak Gain
• TETRA Compatible
• IP67 Rated

Electrical Specifications

• Impedance: 50 Ohm
• VSWR: ≤1.5:1
• Peak Gain: 1dBi
• Frequency Range: 433MHz
• Bandwidth: 10MHz
• Power Capacity: 50W
• Polarization: Vertical

Mechanical Specifications

• Operating temperature:-30 – +75°C
• Storage temperature:-30 – +75°C
• Dimensions: 46 Ø x 15mm
• Cable: RG174
• Connector: SMA Male
• Mounting Method: M12mm
