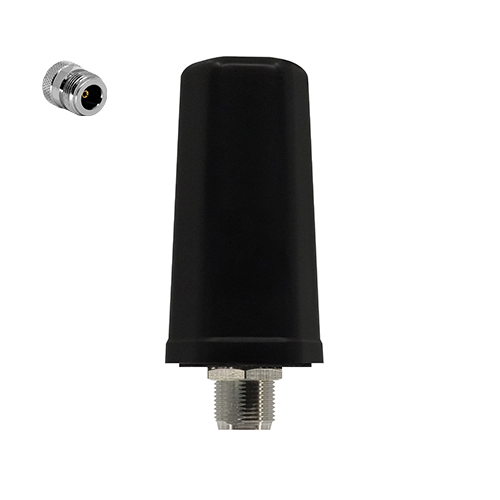

The Tango 40 is a wide band outdoor antenna range aimed at the 4G/WiFi frequency but equally capable of 2G and 3G frequencies.
The antenna has a high peak gain of 5dBi in the upper frequency band and 1-3dBi peak performance in the mid and lower frequency band.
Standard or custom cable assemblies are available with length and connector variations. See the ‘RF Cables’ section for details
• 5dBi gain at 4G/2600MHz
• Outdoor rugged antenna
• N-type female connector
• IP65 Rated
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.
Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
Siretta Part Number: TANGO40/x/NTYPEF/S/S/32
Description: 5G/4G/Dual Band Wi-Fi/LoRa/SigFox Panel Mount Antenna N-Type Female Connector
Alternative cable lengths and connector types can be specified for volume orders.
