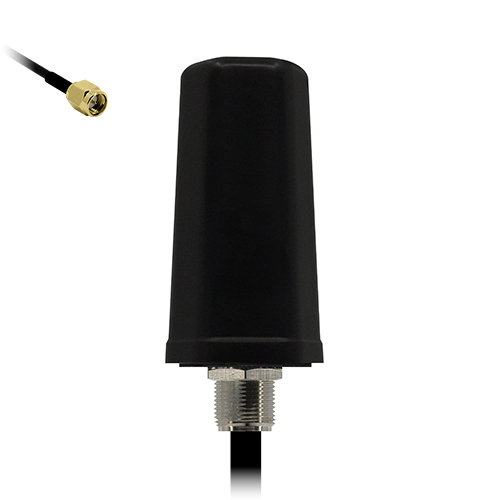

The Tango 41 is a wide band outdoor antenna range aimed at the 4G/WiFi frequency but equally capable of 2G and 3G frequencies. The antenna has a high peak gain of 5dBi in the upper frequency band and 1-3dBi peak performance in the mid and lower frequency band.
The Tango 41 has an integrated RF cable terminated with an SMA male connector. Alternative connectors and cable lengths can be specified for volume orders.
• 5dBi gain at 4G/2600MHz
• Outdoor rugged antenna
• Integrated RF cable
• IP65 Rated

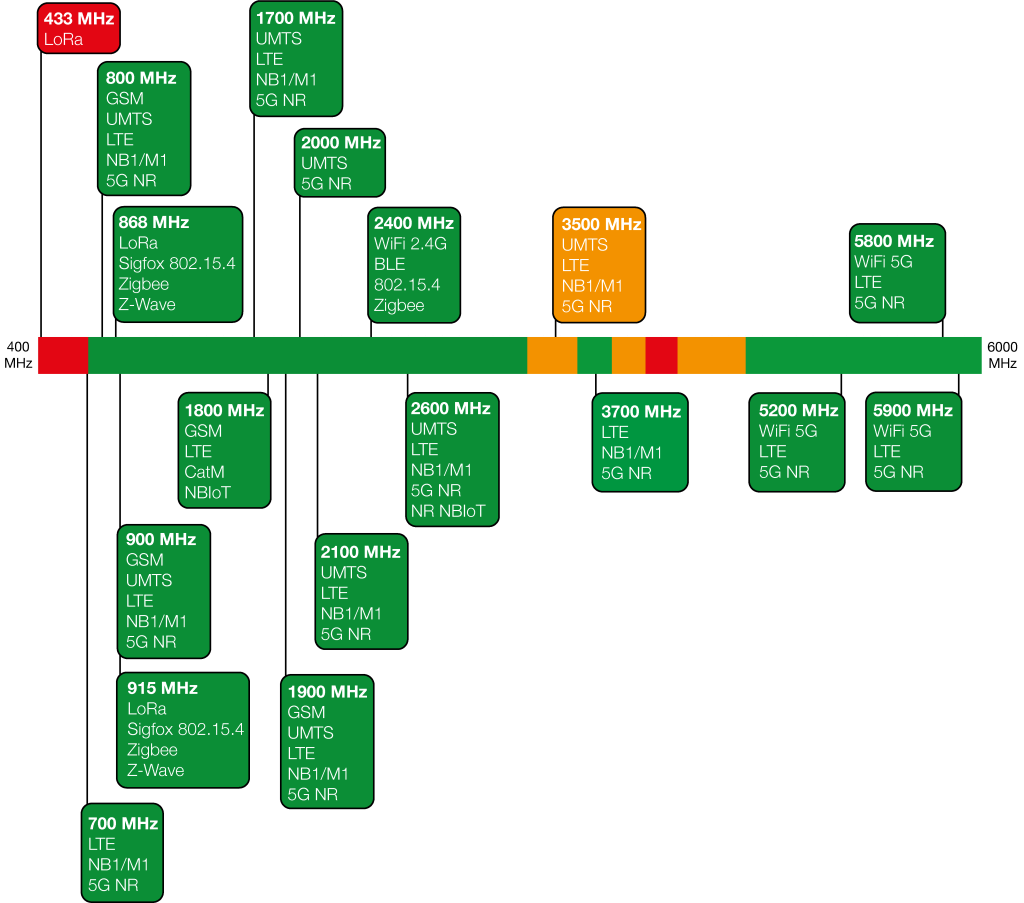

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.
Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
Siretta Part Number: TANGO41/1M/SMAM/S/S/15
Description: 5G/4G/Dual Band Wi-Fi/LoRa/SigFox Panel Mount Antenna 1M Cable SMA Male Connector
Siretta Part Number: TANGO41/1M/SMAM/S/S/15
Description: 5G/4G/Dual Band Wi-Fi/LoRa/SigFox Panel Mount Antenna 2.5M Cable SMA Male Connector
Siretta Part Number: TANGO41/1M/SMAM/S/S/15
Description: 5G/4G/Dual Band Wi-Fi/LoRa/SigFox Panel Mount Antenna 5M Cable SMA Male Connector
Alternative cable lengths and connector types can be specified for volume orders.
