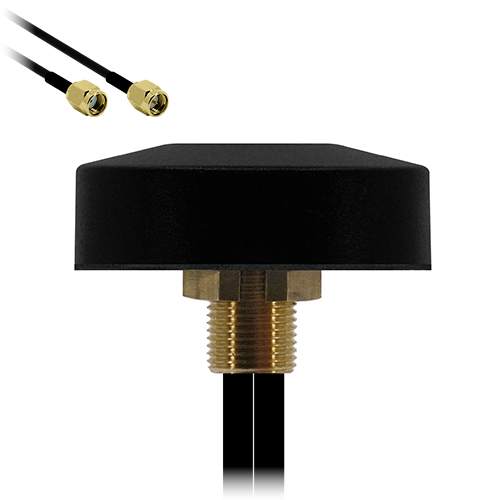

Tango 43Combined 2G/4G (LTE) and WiFi Antenna

The Tango 43 family combines two antennas in one package and is ideal for 4G / WiFi applications. The antenna covers two frequency bands, 1.88 to 1.9GHz and 2.5 to 2.6GHz providing coverage for GPRS/LTE (2G/4G) and WiFi.

A great dual package antenna to enable cross connection between mobile and in building local area network systems. Ideal for controlling lighting and power sockets as well as for data collection from sensors. With 2 antennas within the same package, time and money is saved on both product and installation costs.

Supplied as standard with SMA male connectors and two cable lengths, 0.5 and 2.5m. Alternative connectors and cable lengths may be specified for volume orders.

• Two separate antennas in one package
• 1880 – 1900MHz (GPRS/2G)
• 2572 – 2635 MHz (LTE/4G)
• 2400MHz WiFi
• IP67 Rated

Best for signal coverage in the following bands:
• 2G Band 9 (E-GSM-900)
• 3G Band 8 (E-GSM-900)
• 4G Band 20 (800)


2G
GSM
3G
UMTS
4G
LTE
BLE
Bluetooth
IP
67
ISM
2450
TANGO
thread
WLAN
2400
ZB
Zigbee


RoHS
Compliant

Datasheets

TANGO 43 IP Test Certificate
Tango 43 Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: TANGO43/0.5M/SMAM/SMAM/RP/S/S/17
Description: Combined 4G & WiFi Antenna SMA Male Connectors 0.5m

Request For Quote

Siretta Part Number: TANGO43/2.5M/SMAM/SMAM/RP/S/S/17
Description: Combined 4G & WiFi Antenna SMA Male Connectors 2.5m

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders.
