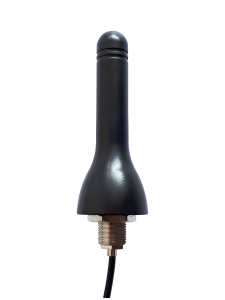

Tango 52450MHz 79mm Length Panel Mount Antenna

The Tango 52 is strong short antenna ideally suited to panel mounting or remotely from the device on a bracket to maximise signal strength. For its comparatively small size the antenna has a good peak gain of 2dBi and omni directional radiation. Supplied as standard with an SMA male connector and 2m of cable. The antenna can be supplied with alternative cable lengths or connector types for short run volume orders.

Key Features

• Robust panel mount design
• 450MHz
• Peak Gain 2dBi
• Ideal for meter panels or bracket mounting

Electrical Specifications

• Temperature Range: -30°C – +75°C
• Impedance: 50 Ohm
• Peak Gain: 2dBi
• VSWR: <1.5:1
• Frequency Range: 400-480MHz
• Polarization: Vertical
• Max Input Power: 50W


Mechanical Specifications

• Dimensions: L79mm x 30mm Ø
• Weight: 50g
• Connector: SMA
• Cable: RG174
• Mounting Method: M12 14mm Stud
• Max material thickness: 7mm
