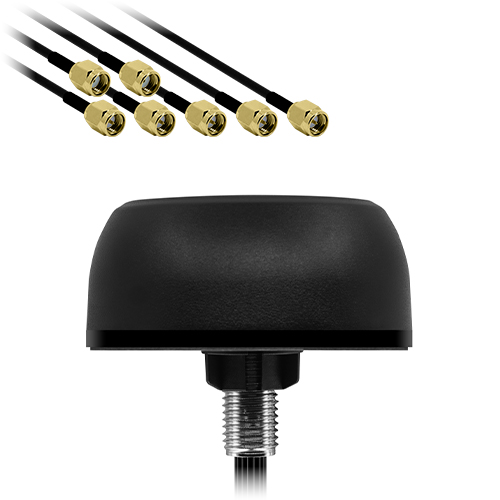

Tango 57Wideband IP68 MIMO Puck Antenna for 5G/4G, Wi-Fi 7 and GPS L1

The Tango 57 is a high-performance 7-in-1 MIMO antenna system tailored for IoT/M2M, smart utilities, transportation, marine, and agricultural applications.

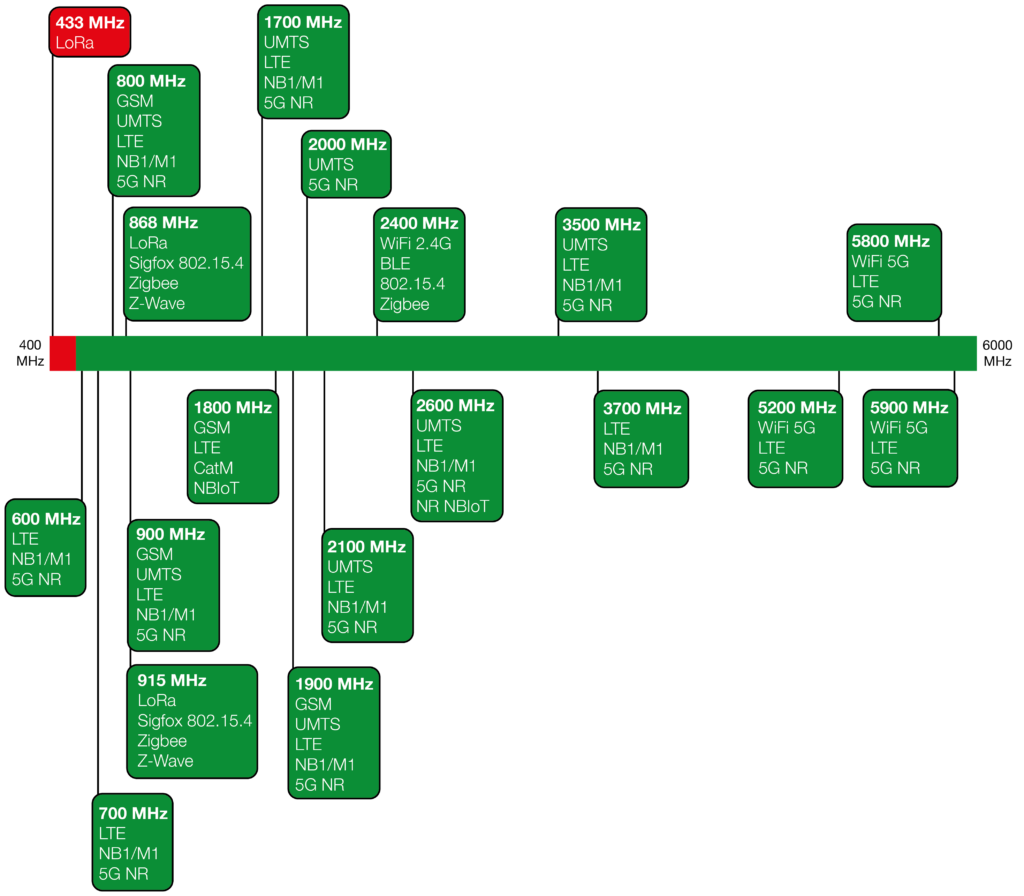

It features four 5G/LTE ports covering 617 MHz to 6000 MHz, supporting all major global 4G and 5G bands.

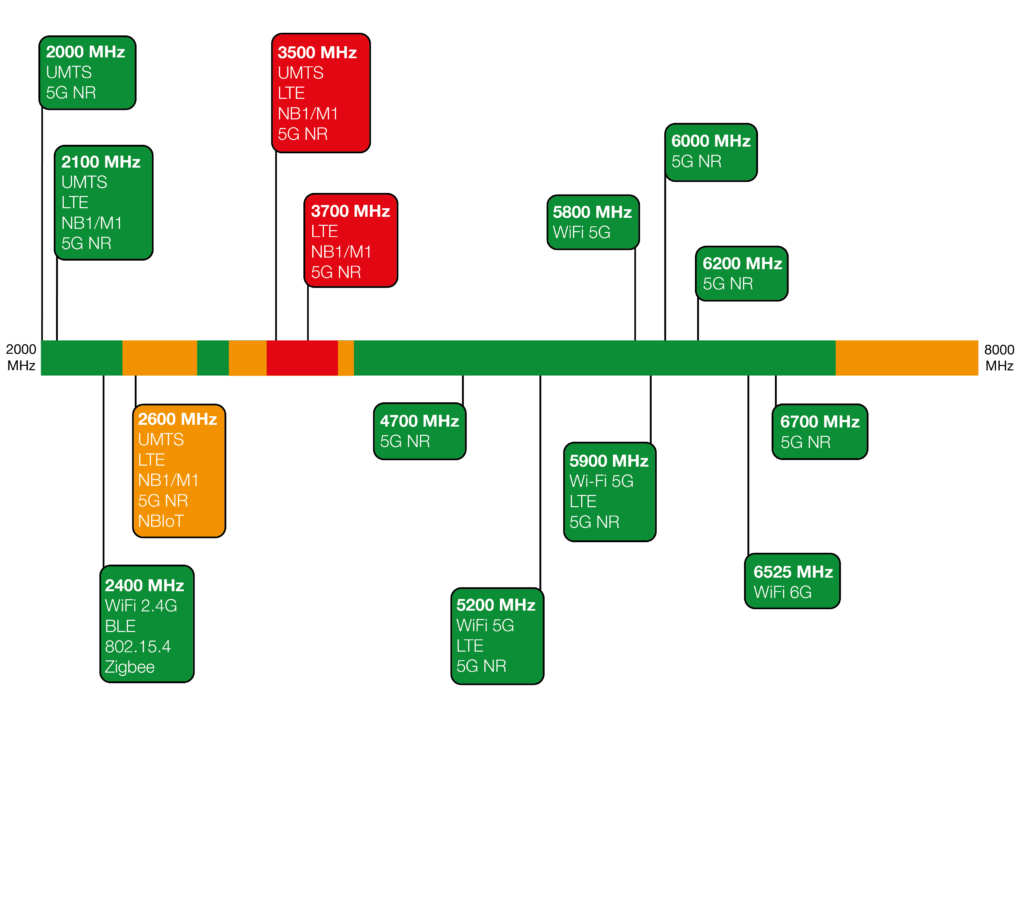

Additionally, it includes two Wi-Fi ports supporting dual-band 2.4GHz, 5GHz, and 6GHz for compatibility with Wi-Fi 7 (802.11ax), providing high-speed, concurrent data transfer. The GPS port covers band L1 for applications requiring location tracking.

The Tango 57 excels with its optimised design, offering excellent omnidirectional radiation patterns, high efficiency and an IP68 rated enclosure. This antenna is ideal for applications demanding high-speed data throughput and reliable connectivity.

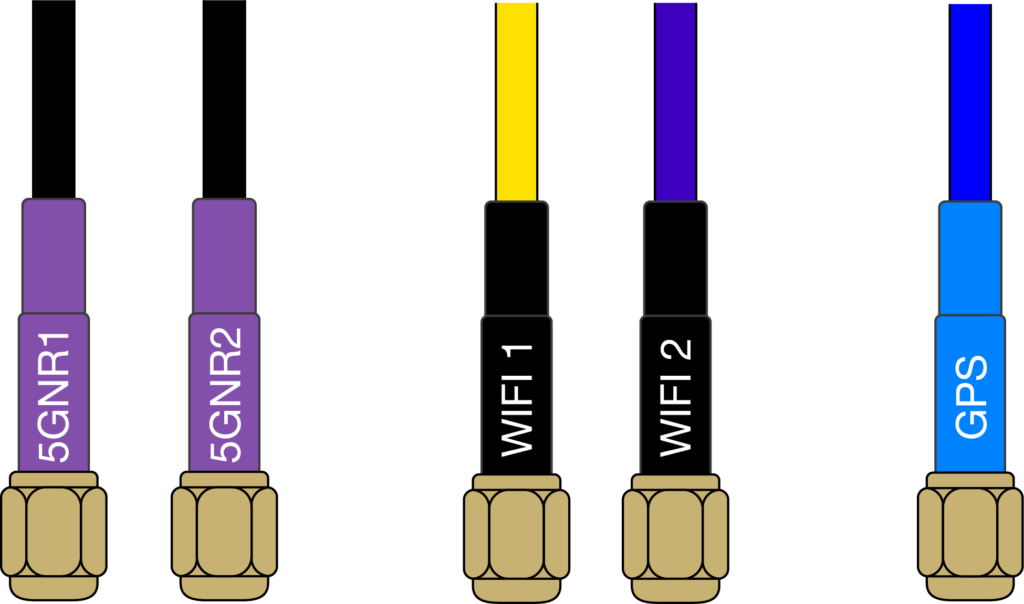

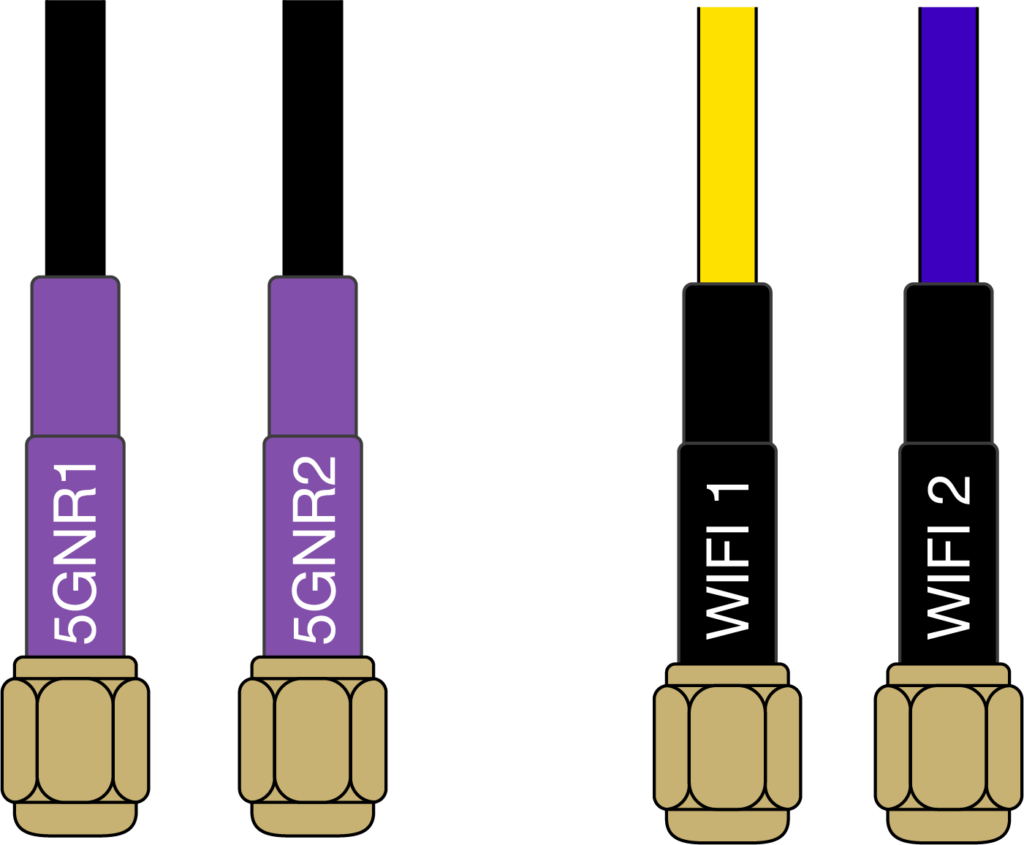

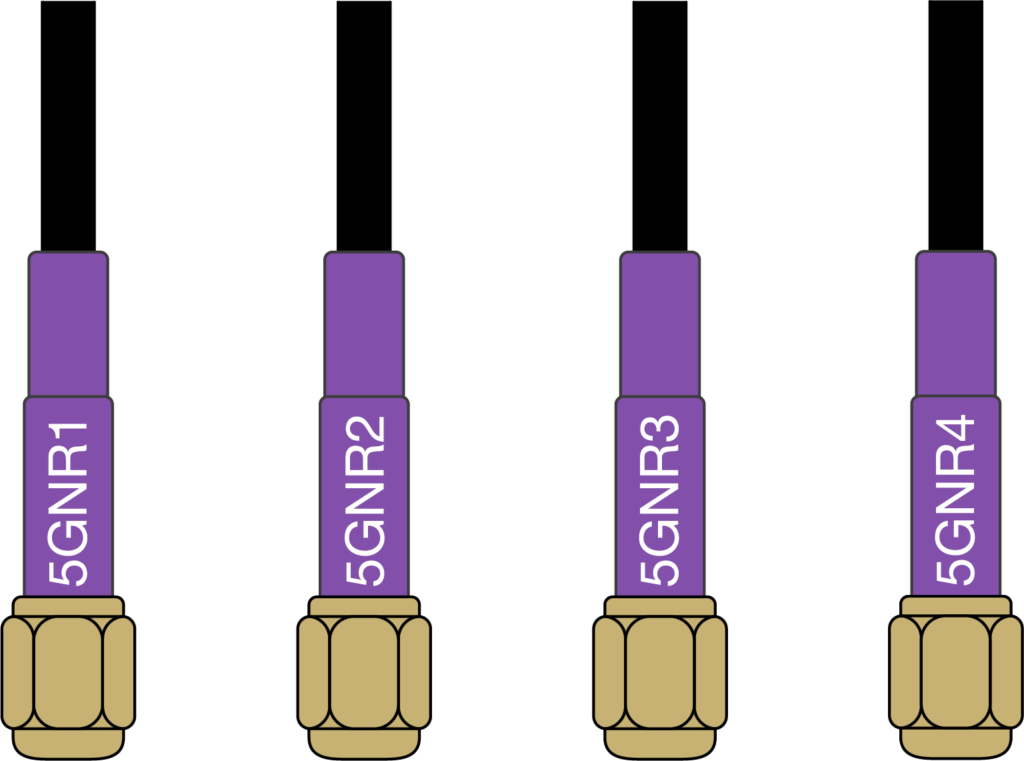

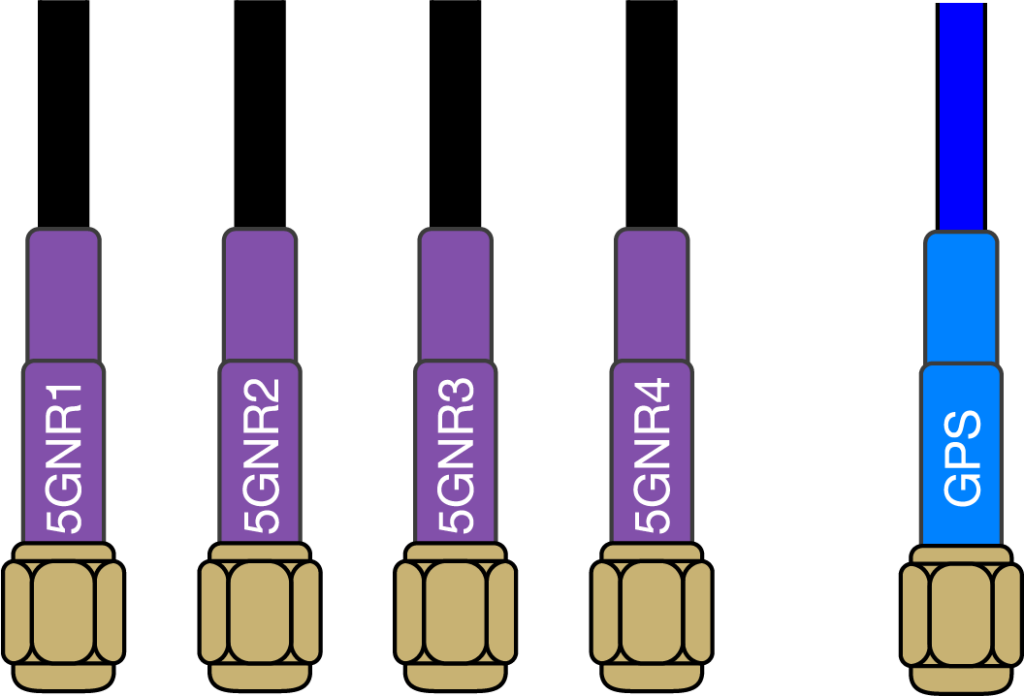

Additional configurations are available to meet specific needs, with details provided at the end of this datasheet.

Key Features

• Supports 5G NR / 4G LTE / 3G UMTS Bands
• Covers 617 MHz to 6000 MHz for global cellular compatibility
• Supports Wi-Fi 7 (2.4 GHz, 5 GHz, and 6 GHz bands)
• GNSS support for GPS band L1
• High-efficiency omnidirectional radiation patterns
• IP68 rated for waterproof and dustproof protection
• Compact low-profile puck design for easy installation
• High isolation between antennas to maintain signal integrity.

Electrical Specifications

• Impedance: 50 Ohm
• Polarization: Vertical
• Max Input Power: 25 W
• Ground plane independent: Yes

Environmental Specifications

• Operating Temperature range: -40 to +85 °C
• Storage Temperature range: -40 to +85 °C

Mechanical Specifications

• Dimensions: ⌀189 mm Length, 49 mm Height
• Weight: 230 g

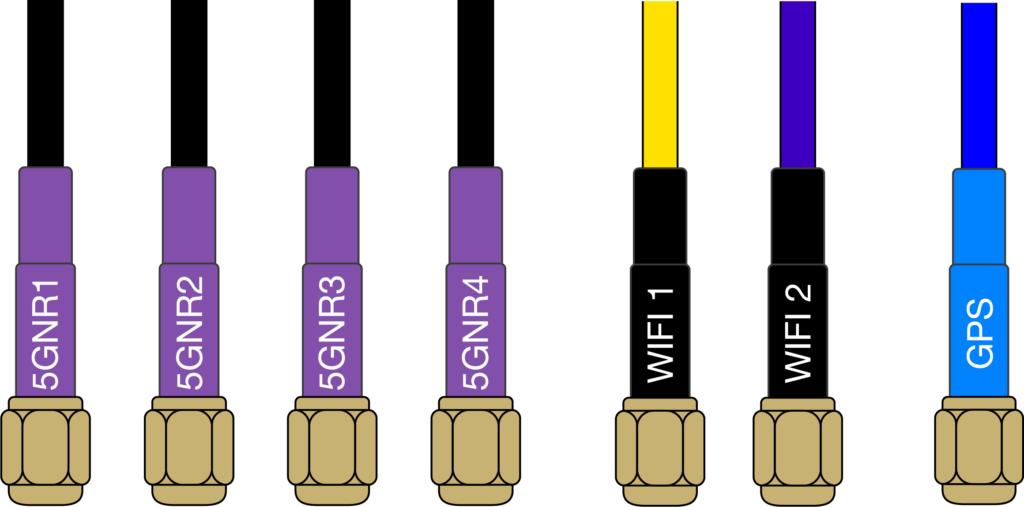

• Connector: SMA Male / RP-SMA Male
• Mounting method: Through-hole/Screw Mount
• Housing materials: PC/ABS
